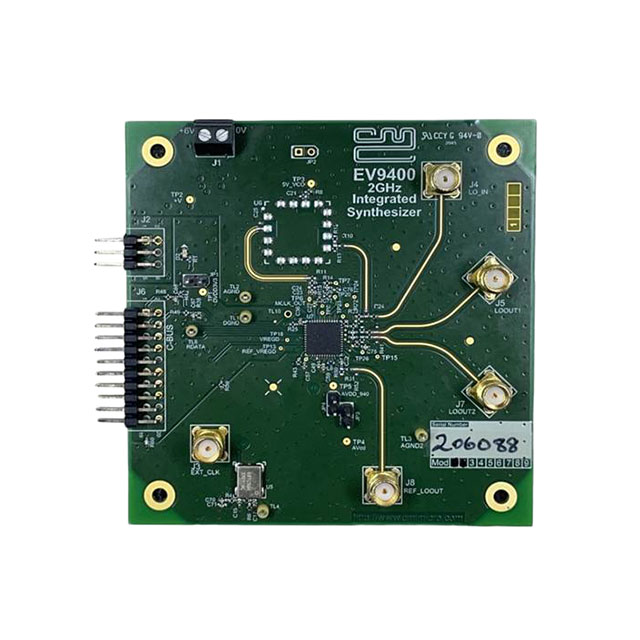

EV9400

Active

CML Micro

EVAL KIT FOR CMX940

Search across all available documentation for this part.

Active

CML Micro

EVAL KIT FOR CMX940

Technical Specifications

Parameters and characteristics for this part

Specification	EV9400

For Use With/Related Products	CMX940
Frequency [Max]	2.04 GHz
Frequency [Min]	49 MHz
Supplied Contents	Board(s)
Type	Frequency Synthesizer

Part	Package / Case	Frequency [Max]	Frequency [Min]	Supplier Device Package	Function	RF Type	Mounting Type	Secondary Attributes [Min]	Secondary Attributes [Max]	Supplied Contents	For Use With/Related Products	Type
CML Micro CMX940T1	48-WFLGA Exposed Pad	2.04 GHz	49 MHz	48-LGA (7x7)	Fractional Integer-N Synthesizer/ VCO	General Purpose	Surface Mount	3 V	3.6 V
CML Micro CMX940T1-TR1K	48-WFLGA Exposed Pad	2.04 GHz	49 MHz	48-LGA (7x7)	Fractional Integer-N Synthesizer/ VCO	General Purpose	Surface Mount	3 V	3.6 V
CML Micro EV9400		2.04 GHz	49 MHz							Board(s)	CMX940	Frequency Synthesizer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 207.78

General part information

- CMX940 Frequency Synthesizer 49MHz ~ 2.04GHz Evaluation Board
