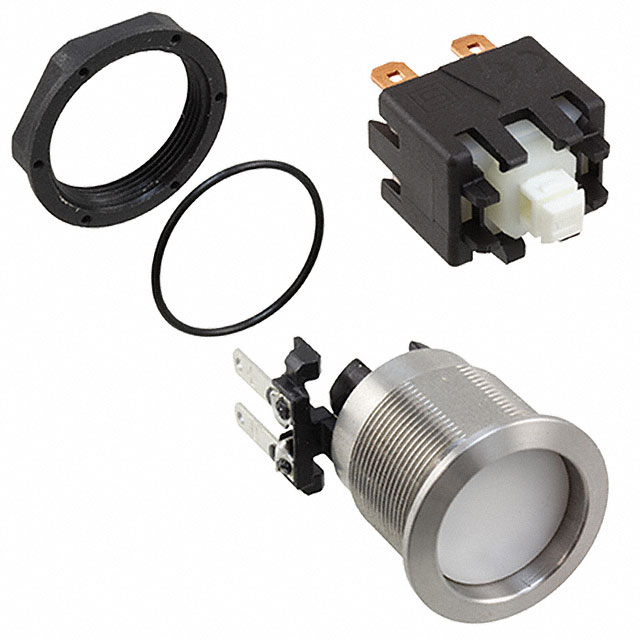

3-101-024

Active

SCHURTER Inc.

SWITCH: VANDAL RESISTANT; POS: 2; DPST-NO; 16A/250VAC; OFF-ON

Deep-Dive with AI

Search across all available documentation for this part.

3-101-024

Active

SCHURTER Inc.

SWITCH: VANDAL RESISTANT; POS: 2; DPST-NO; 16A/250VAC; OFF-ON

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-101-024

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Clear
Current Rating (Amps)	16 A
Electrical Life	20000 Steps
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

msm-la-cs-19 Series

AC Power Entry Modules SCREW-ON QC 15A BLEED RES. REAR MNT.

Part	Voltage Rating - AC	Actuator Type	Mounting Type	Illumination Type, Color	Termination Style	Features	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Marking	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Type	Ingress Protection	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions	Approval Agency	Termination	Termination	Termination	Filter Type	Connector Type	Connector Style	Current Rating - Appliance Inlet	Current Rating - Filter	Material Flammability Rating	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
SCHURTER Inc. 3-101-425	42 V	Button Flush Round	Panel Mount Front	Blue Green LED Red	Wire Leads	Ceramic Actuator	100 mA	60 VDC	Off-On	No Marking	SPST	22.1 mm	-40 °C	60 °C	Clear	28 VDC	5 VDC	Capacitive Illuminated	IP67 - Dust Tight Waterproof
SCHURTER Inc. 3-101-029	250 V	Button Round	Panel Mount Front	Blue LED	Quick Connect - 0.187" (4.7mm)		16 A	30 V	Off-On	No Marking	SPST	22.1 mm	-20 C	85 °C	Clear			Anti-Vandal Illuminated	IP64 - Dust Tight Water Resistant	100000 Cycles	20000 Steps	24 V
SCHURTER Inc. 3-101-423	42 V	Button Flush Round	Panel Mount Front	Green/Red LED	Wire Leads	Finger Guide	100 mA	60 VDC	Off-On	No Marking	SPST	19.1 mm	-40 °C	60 °C	Silver	28 VDC	5 VDC	Capacitive Illuminated	IP67 - Dust Tight Waterproof
SCHURTER Inc. 5120.0300.0			Flange Panel Mount			Shielded													IP40				250 VAC	Variable Size	CCC cULus ENEC	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	IEC 320-C14	1 A	1 A	UL94 V-0
SCHURTER Inc. 3-101-016	250 V	Button Round	Panel Mount Front	LED Red	Quick Connect - 0.187" (4.7mm)		16 A	30 V	Off-On	No Marking	DPST	22.1 mm	-20 C	85 °C	Silver			Anti-Vandal Illuminated	IP64 - Dust Tight Water Resistant	100000 Cycles	20000 Steps	24 V
SCHURTER Inc. 5120.1303.0			Flange Panel Mount			Shielded													IP40				250 VAC	Variable Size	CCC cULus ENEC	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	IEC 320-C14	4 A	4 A	UL94 V-0
SCHURTER Inc. 5120.0303.0			Flange Panel Mount			Shielded													IP40				250 VAC	Variable Size	CCC cULus ENEC	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	IEC 320-C14	4 A	4 A	UL94 V-0
SCHURTER Inc. 3-101-033	250 V	Button Round	Panel Mount Front	Green LED	Quick Connect - 0.187" (4.7mm)		16 A	30 V	Off-On	No Marking	SPST	22.1 mm	-20 C	85 °C	Clear			Anti-Vandal Illuminated	IP64 - Dust Tight Water Resistant	100000 Cycles	20000 Steps	24 V
SCHURTER Inc. 3-101-685			Panel Mount Snap-In			Light Pipe V-Lock Notch																	250 VAC		CCC CSA ENEC UL VDE				Unfiltered - Commercial	Receptacle Female Sockets	IEC 320-2-2/F	10 A		UL94 V-0	2 mm	0.079 in	32.5 mm	24.9 mm
SCHURTER Inc. 3-101-024	250 V	Button Round	Panel Mount Front	Green LED	Quick Connect - 0.187" (4.7mm)		16 A	30 V	Off-On	No Marking	DPST	19.1 mm	-20 C	85 °C	Clear			Anti-Vandal Illuminated	IP64 - Dust Tight Water Resistant	100000 Cycles	20000 Steps	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.69
		50	$ 47.67
TME	N/A	20	$ 51.91
