3-101-423
ActiveSCHURTER Inc.

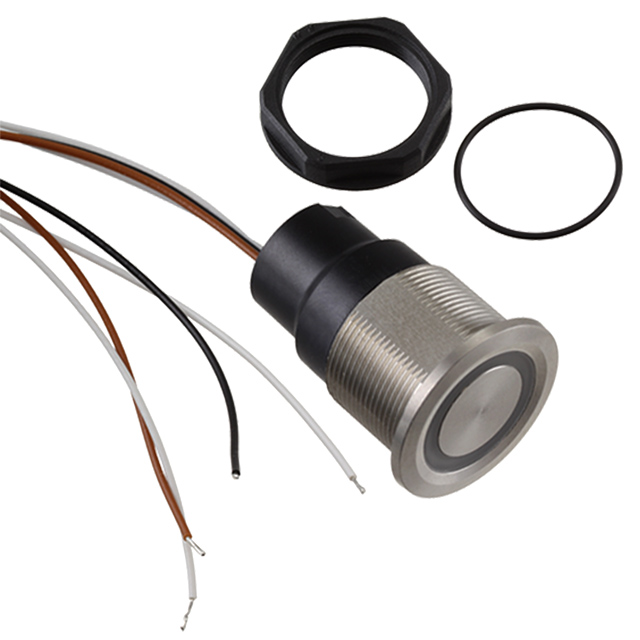

SWITCH PUSHBUTTON SPST 100MA 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-101-423
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPST 100MA 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-101-423 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 100 mA |
| Features | Finger Guide |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) [Max] | 28 VDC |
| Illumination Voltage (Nominal) [Min] | 5 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm |
| Switch Function | Off-On |
| Termination Style | Wire Leads |
| Type | Capacitive, Illuminated |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 60 VDC |
msm-la-cs-19 Series
AC Power Entry Modules SCREW-ON QC 15A BLEED RES. REAR MNT.
| Part | Voltage Rating - AC | Actuator Type | Mounting Type | Illumination Type, Color | Termination Style | Features | Current Rating (Amps) | Voltage Rating - DC | Switch Function | Actuator Marking | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Illumination Voltage (Nominal) [Max] | Illumination Voltage (Nominal) [Min] | Type | Ingress Protection | Mechanical Life | Electrical Life | Illumination Voltage (Nominal) | Voltage Rating - Appliance Inlet | Panel Cutout Dimensions | Approval Agency | Termination | Termination | Termination | Filter Type | Connector Type | Connector Style | Current Rating - Appliance Inlet | Current Rating - Filter | Accomodates a Fuse | Material Flammability Rating | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. | 42 V | Button Flush Round | Panel Mount Front | Blue Green LED Red | Wire Leads | Ceramic Actuator | 100 mA | 60 VDC | Off-On | No Marking | SPST | 22.1 mm | -40 °C | 60 °C | Clear | 28 VDC | 5 VDC | Capacitive Illuminated | IP67 - Dust Tight Waterproof | ||||||||||||||||||||
SCHURTER Inc. | 250 V | Button Round | Panel Mount Front | Blue LED | Quick Connect - 0.187" (4.7mm) | 16 A | 30 V | Off-On | No Marking | SPST | 22.1 mm | -20 C | 85 °C | Clear | Anti-Vandal Illuminated | IP64 - Dust Tight Water Resistant | 100000 Cycles | 20000 Steps | 24 V | ||||||||||||||||||||
SCHURTER Inc. | 42 V | Button Flush Round | Panel Mount Front | Green/Red LED | Wire Leads | Finger Guide | 100 mA | 60 VDC | Off-On | No Marking | SPST | 19.1 mm | -40 °C | 60 °C | Silver | 28 VDC | 5 VDC | Capacitive Illuminated | IP67 - Dust Tight Waterproof | ||||||||||||||||||||
SCHURTER Inc. | Flange Panel Mount | Shielded | IP40 | 250 VAC | Variable Size | CCC cULus ENEC | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial Medical | Male Blades Receptacle | IEC 320-C14 | 1 A | 1 A | UL94 V-0 | ||||||||||||||||||||||||
SCHURTER Inc. | 250 V | Button Round | Panel Mount Front | LED Red | Quick Connect - 0.187" (4.7mm) | 16 A | 30 V | Off-On | No Marking | DPST | 22.1 mm | -20 C | 85 °C | Silver | Anti-Vandal Illuminated | IP64 - Dust Tight Water Resistant | 100000 Cycles | 20000 Steps | 24 V | ||||||||||||||||||||
SCHURTER Inc. | Flange Panel Mount | Shielded | IP40 | 250 VAC | Variable Size | CCC cULus ENEC | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial Medical | Male Blades Receptacle | IEC 320-C14 | 4 A | 4 A | UL94 V-0 | ||||||||||||||||||||||||
SCHURTER Inc. | Flange Panel Mount | Shielded | IP40 | 250 VAC | Variable Size | CCC cULus ENEC | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial Medical | Male Blades Receptacle | IEC 320-C14 | 4 A | 4 A | UL94 V-0 | ||||||||||||||||||||||||
SCHURTER Inc. | 250 V | Button Round | Panel Mount Front | Green LED | Quick Connect - 0.187" (4.7mm) | 16 A | 30 V | Off-On | No Marking | SPST | 22.1 mm | -20 C | 85 °C | Clear | Anti-Vandal Illuminated | IP64 - Dust Tight Water Resistant | 100000 Cycles | 20000 Steps | 24 V | ||||||||||||||||||||
SCHURTER Inc. | Panel Mount Snap-In | Light Pipe V-Lock Notch | 250 VAC | CCC CSA ENEC UL VDE | Unfiltered - Commercial | Receptacle Female Sockets | IEC 320-2-2/F | 10 A | UL94 V-0 | 2 mm | 0.079 in | 32.5 mm | 24.9 mm | ||||||||||||||||||||||||||
SCHURTER Inc. | 250 V | Button Round | Panel Mount Front | Green LED | Quick Connect - 0.187" (4.7mm) | 16 A | 30 V | Off-On | No Marking | DPST | 19.1 mm | -20 C | 85 °C | Clear | Anti-Vandal Illuminated | IP64 - Dust Tight Water Resistant | 100000 Cycles | 20000 Steps | 24 V |
