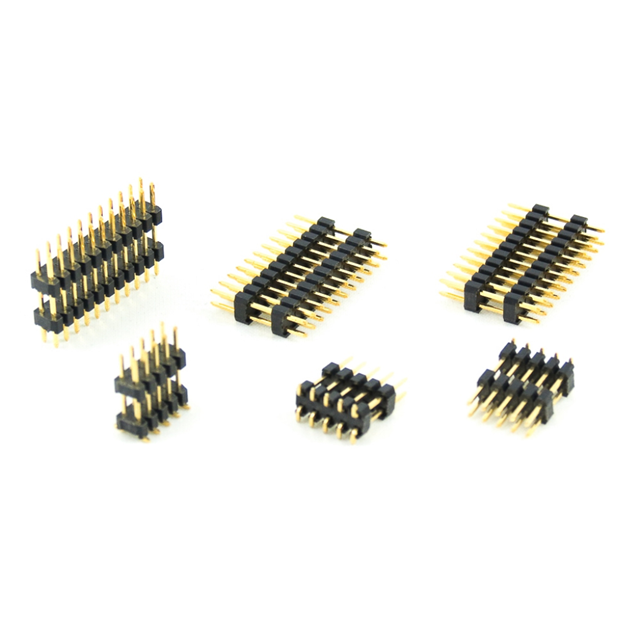

2114-2X05G00S-3-3-10.5B

Active

Oupiin

PIN HEADER, DOUBLE ROW, 10 PINS,

Deep-Dive with AI

Search across all available documentation for this part.

2114-2X05G00S-3-3-10.5B

Active

Oupiin

PIN HEADER, DOUBLE ROW, 10 PINS,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2114-2X05G00S-3-3-10.5B

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	Flash
Length - Overall Pin	0.413 in
Length - Overall Pin	10.5 mm
Length - Post (Mating) [x]	0.118 in
Length - Post (Mating) [x]	3 mm
Length - Stack Height [z]	4.5 mm
Length - Stack Height [z]	0.177 in
Length - Tail [x]	0.118 in
Length - Tail [x]	3 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

2114-2 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Length - Tail [x]	Length - Tail [x]	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]	Mounting Type	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Row Spacing	Row Spacing	Number of Rows	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail
Oupiin 2114-2X05G00S-3-3-10.5B	10	0.079 in	2 mm	Flash	0.118 in	3 mm	Solder	0.118 in	3 mm	4.5 mm	0.177 in	Through Hole	Gold	0.413 in	10.5 mm	2 mm	0.079 in	2	Black
Oupiin 2114-2X20G00S/033/044/K
Oupiin 2114-2X10G00S-3-3-17.5B	20	0.079 in	2 mm	Flash	0.118 in	3 mm	Solder	0.118 in	3 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	17.5 mm	0.689 in	11.5 mm	0.453 in
Oupiin 2114-2X12G00S-2.8-8-17.1B	24	0.079 in	2 mm	Flash			Solder	0.315 in	8 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	17.1 mm	0.673 in	6.3 mm	0.248 in	2.8 mm	0.11 in
Oupiin 2114-2X16G00S-3.2-3.2-12B		0.079 in	2 mm	Flash	0.126 in	3.2 mm	Solder	0.126 in	3.2 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	12 mm	0.472 in	5.6 mm	0.22 in
Oupiin 2114-2X05G00S-3-3-17.5B	10	0.079 in	2 mm	Flash	0.118 in	3 mm	Solder	0.118 in	3 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	17.5 mm	0.689 in	11.5 mm	0.453 in
Oupiin 2114-2X03G00S-3.2-3.2-12B	6	0.079 in	2 mm	Flash	0.126 in	3.2 mm	Solder	0.126 in	3.2 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	12 mm	0.472 in	5.6 mm	0.22 in
Oupiin 2114-2X16G00S3-3-14B		0.079 in	2 mm	Flash	0.118 in	3 mm	Solder	0.118 in	3 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	14 mm	0.551 in	8 mm	0.315 in
Oupiin 2114-2X20G00D/069/118T-P	40			Flash			Solder	0.272 in	6.9 mm			Surface Mount	Gold					2		11.8 mm	0.465 in
Oupiin 2114-2X30G00S/2.8/2.8/26.5B	60	0.079 in	2 mm	Flash			Solder	0.11 in	2.8 mm			Through Hole	Gold			2 mm	0.079 in	2	Black	26.5 mm	1.043 in	20.904 mm	0.823 in	2.8 mm	0.11 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		1000	$ 0.24
		2000	$ 0.19
		3000	$ 0.16
		5000	$ 0.14

Description

General part information

2114-2 Series

10 Position Header Spacer Connector 0.079" (2.00mm) Gold Through Hole

Documents

Technical documentation and resources

No documents available
