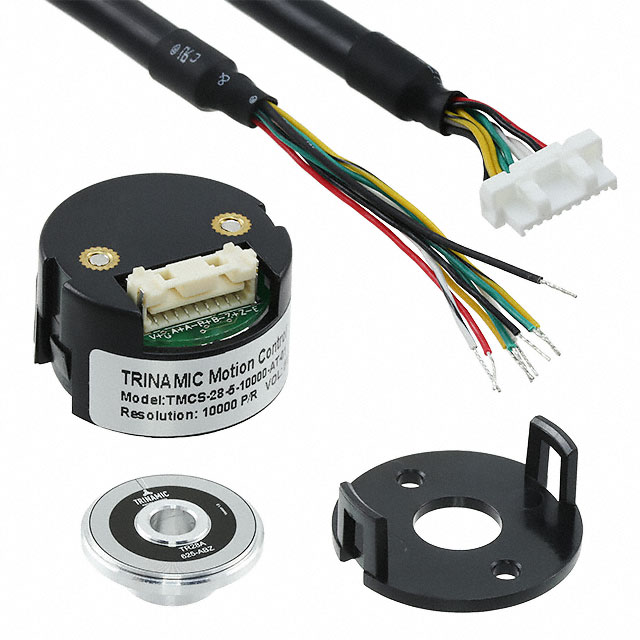

TMCS-28-5-10000-AT-01
UnknownAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCS-28-5-10000-AT-01
UnknownAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCS-28-5-10000-AT-01 |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Output Type | TTL |
| Pulses per Revolution | 10000 per Revolution |
| Termination Style | Pin Header |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15 | $ 79.76 | |
Description
General part information
TMCS-28 Series
Rotary Encoder Optical 10000 TTL Vertical
