TMCS-28-1K-KIT

Active

Analog Devices Inc./Maxim Integrated

OPTICAL ENCODER STARTER KIT A/B/

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

OPTICAL ENCODER STARTER KIT A/B/

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Actuator Type	Output Type	Encoder Type	Orientation	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type
Analog Devices Inc./Maxim Integrated TMCS-28-1K-KIT	Pin Header	Hole for Shaft	TTL	Optical	Right Angle	1024	4.5 V	5.5 V
Analog Devices Inc./Maxim Integrated TMCS-28-5-10000-AT-01	Pin Header	Shaft	TTL	Optical	Vertical	10000 per Revolution	4.5 V	5.5 V	Chassis Mount
Analog Devices Inc./Maxim Integrated TMCS-28-10K-KIT	Pin Header	Shaft	TTL	Optical	Vertical	10000 per Revolution	4.5 V	5.5 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 152.60

General part information

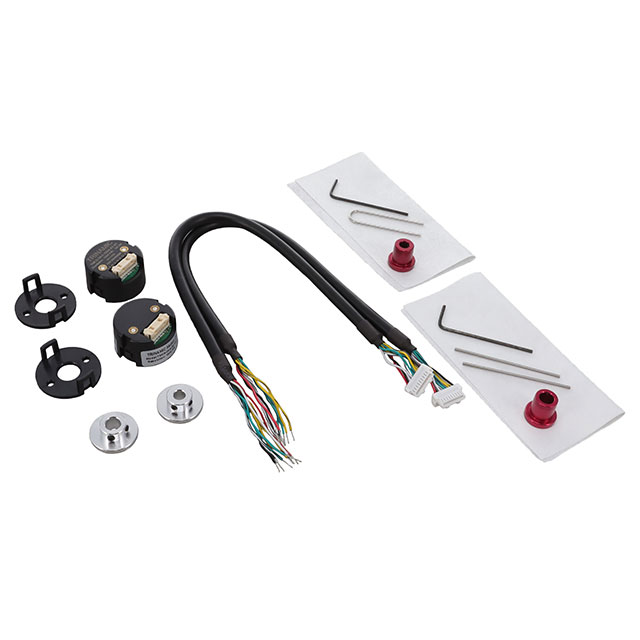

Rotary Encoder Optical 1024 TTL Right Angle
