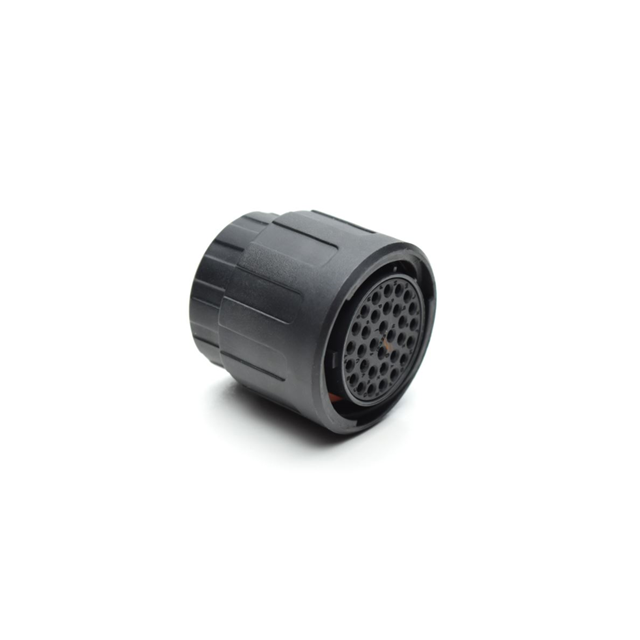

RTS6BS18N32SHEC03

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 32POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Eco|mate® Aquarius™ Flyer +1

RTS6BS18N32SHEC03

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 32POS INLINE

Deep-Dive with AI

DocumentsDatasheet Eco|mate® Aquarius™ Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS18N32SHEC03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 1 Seal, 1 Connector, 1 Ring, 1 O-Ring, 1 Backshell
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Type	For Female Sockets

RTS6BS18 Series

Part	Material Flammability Rating	Connector Type	Number of Positions	Features	Insert Material	Type	Housing Color	Includes	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Orientation	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Size	Note	Shielding	Mounting Type	Ingress Protection	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert
Amphenol Sine Systems Corp RTS6BS18N23SHEC03	UL94 V-0	Plug Housing	23	Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N	18	23	16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock
Amphenol Sine Systems Corp RTS6BS18N32SHEC03	UL94 V-0	Plug Housing		Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N			20	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock	32	18
Amphenol Sine Systems Corp RTS6BS18N8SHEC03	UL94 V-0	Plug Housing	8	Backshell	Thermoplastic	For Female Sockets	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N8P03	UL94 V-0	Plug Housing	8	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N23P03	UL94 V-0	Plug Housing	23	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N	18	23	16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock
Amphenol Sine Systems Corp RTS6BS18N103P03-TW	UL94 V-0	Plug Housing	13	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black	1 Backshell 1 Clamp Ring 1 Connector 1 Nut 1 O-Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N			3 16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-13
Amphenol Sine Systems Corp RTS6BS18N8S03	UL94 V-0	Plug Housing	8	Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N8PHEC03	UL94 V-0	Plug Housing	8	Backshell	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.61
		10	$ 15.87
		25	$ 14.36
		50	$ 13.34
		100	$ 12.42
		250	$ 11.33
		500	$ 10.60

Description

General part information

RTS6BS18 Series

32 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
