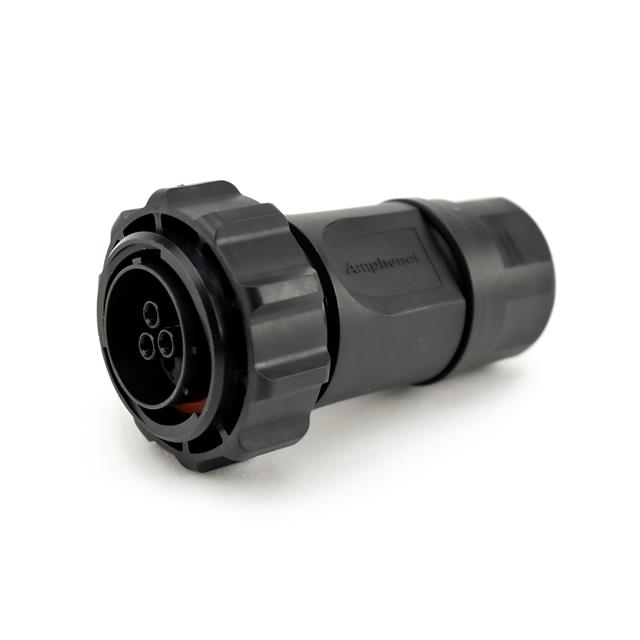

RTS6BS18N103P03-TW

Active

Amphenol Sine Systems Corp

13 (10+3 COAX)POSITIONS, PLUG, P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer Datasheet

RTS6BS18N103P03-TW

Active

Amphenol Sine Systems Corp

13 (10+3 COAX)POSITIONS, PLUG, P

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS18N103P03-TW

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	3, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Includes	1 Backshell, 1 Washer, 1 Connector, 1 O-Ring, 1 Seal, 1 Clamp Ring, 1 Nut
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	13
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	18-13
Shielding	Unshielded
Type	For Male Pins

RTS6BS18 Series

Part	Material Flammability Rating	Connector Type	Number of Positions	Features	Insert Material	Type	Housing Color	Includes	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Orientation	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Size	Note	Shielding	Mounting Type	Ingress Protection	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert
Amphenol Sine Systems Corp RTS6BS18N23SHEC03	UL94 V-0	Plug Housing	23	Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N	18	23	16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock
Amphenol Sine Systems Corp RTS6BS18N32SHEC03	UL94 V-0	Plug Housing		Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N			20	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock	32	18
Amphenol Sine Systems Corp RTS6BS18N8SHEC03	UL94 V-0	Plug Housing	8	Backshell	Thermoplastic	For Female Sockets	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N8P03	UL94 V-0	Plug Housing	8	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N23P03	UL94 V-0	Plug Housing	23	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N	18	23	16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock
Amphenol Sine Systems Corp RTS6BS18N103P03-TW	UL94 V-0	Plug Housing	13	Backshell Coupling Nut	Thermoplastic	For Male Pins	Black	1 Backshell 1 Clamp Ring 1 Connector 1 Nut 1 O-Ring 1 Seal 1 Washer	Circular	125 °C	-40 °C	Crimp	N			3 16	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-13
Amphenol Sine Systems Corp RTS6BS18N8S03	UL94 V-0	Plug Housing	8	Backshell Coupling Nut	Thermoplastic	For Female Sockets	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8
Amphenol Sine Systems Corp RTS6BS18N8PHEC03	UL94 V-0	Plug Housing	8	Backshell	Thermoplastic	For Male Pins	Black		Circular	125 °C	-40 °C	Crimp	N			2.5 mm	Contacts Not Included	Unshielded	Free Hanging (In-Line)	IP67 IP69K	Bayonet Lock			18-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.14
		10	$ 17.11
		25	$ 16.04
		50	$ 15.28
		100	$ 14.55
		300	$ 13.46
		500	$ 12.99

Description

General part information

RTS6BS18 Series

13 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet
