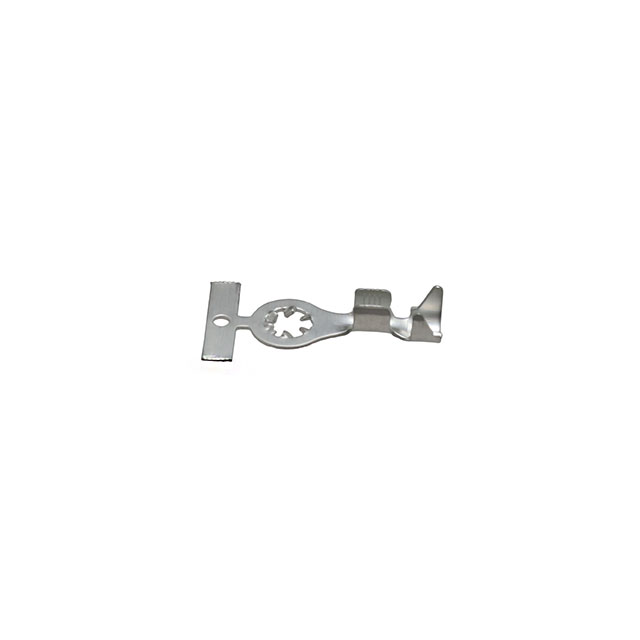

0190840007

Active

Molex

CONN RING CIRC 14-18AWG #6 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN RING CIRC 14-18AWG #6 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Terminal Type	Contact Material	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Termination	Insulation	Mounting Type	Contact Finish	Features	Wire Gauge [Min]	Wire Gauge [Max]	Thickness	Thickness	Stud/Tab Size
Molex 0190840007	Circular	Steel	6 Stud	24.13 mm	0.95 in	Crimp	Non-Insulated	Free Hanging (In-Line)	Tin	Inner Teeth	14 AWG	18 AWG	0.024 in	0.61 mm
Molex 0190840001
Molex 0190840002
Molex 0190840006	Circular	Brass	10 Stud	24.13 mm	0.95 in	Crimp	Non-Insulated	Free Hanging (In-Line)	Tin	Inner Teeth	14 AWG	18 AWG	0.024 in	0.61 mm
Molex 0190840008	Circular	Steel		24.13 mm	0.95 in	Crimp	Non-Insulated	Free Hanging (In-Line)	Tin	Inner Teeth	14 AWG	18 AWG	0.024 in	0.61 mm	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6 Stud Circular 14-18 AWG Crimp
