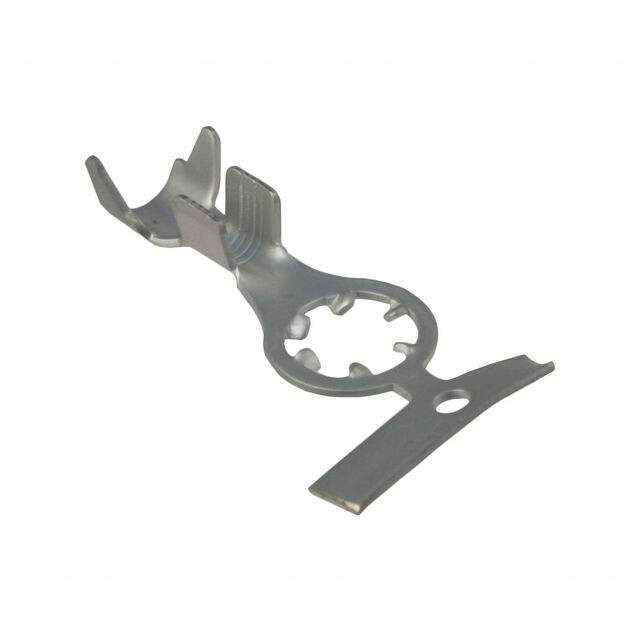

0190840006
ActiveMolex
CONN RING CIRC 14-18AWG #10
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0190840006
ActiveMolex
CONN RING CIRC 14-18AWG #10
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190840006 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Inner Teeth |
| Insulation | Non-Insulated |
| Length - Overall [x] | 24.13 mm |
| Length - Overall [x] | 0.95 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.024 in |
| Thickness | 0.61 mm |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.16 | ||
| 4000 | $ 0.15 | |||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 14000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
019084 Series
Ring Terminal Connector 10 Stud Circular 14-18 AWG Crimp
