316-038-520-101

Active

EDAC Inc.

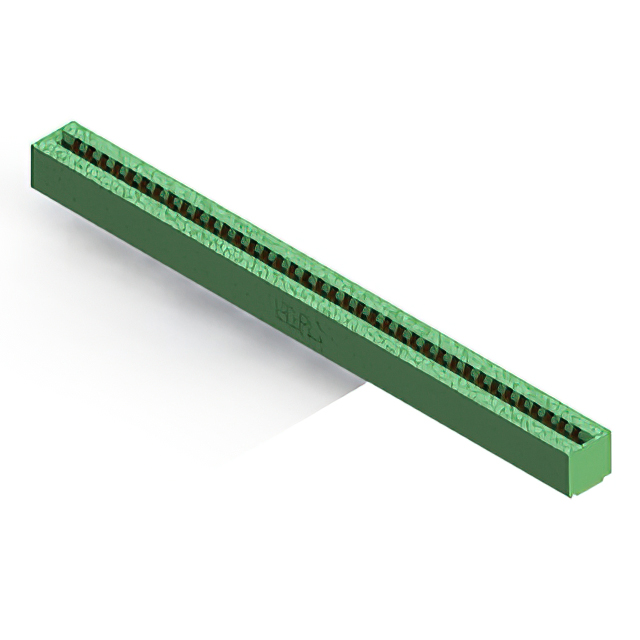

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

316-038-520-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	316-038-520-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	38
Number of Positions/Bay/Row [custom]	38
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

316-038 Series

Part	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Read Out	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Number of Positions	Card Type	Number of Rows	Color	Termination	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Features
EDAC Inc. 316-038-521-112	Female	10 Áin	0.25 Ám	Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Gold	38	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 316-038-521-158	Female	10 Áin	0.25 Ám	Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Gold	38		4-40 Flush Mount Threaded Insert Top Opening		1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 316-038-400-158	Female				Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Tin	38		4-40 Flush Mount Threaded Insert Top Opening		1	76	Non Specified - Dual Edge	2	Green	Solder Eyelet(s)	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 316-038-421-107	Female			Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Tin	38		Flush Mount M3 Threaded Insert Top Opening		1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 316-038-421-102	Female			Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Tin	38	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 316-038-521-101	Female	10 Áin	0.25 Ám	Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Gold	38				1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 316-038-421-168	Female			Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Tin	38		4-40 Flush Mount Threaded Insert Top Opening		1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 316-038-520-178	Female	10 Áin	0.25 Ám	Panel Mount Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Gold	38		4-40 Flush Mount Threaded Insert Top Opening		1	76	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 316-038-520-101	Female	10 Áin	0.25 Ám	Through Hole	Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Gold	38				1	38	Non Specified - Dual Edge	2	Green	Solder	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 316-038-400-102	Female				Dual	Copper Alloy	Cantilever	-40 °C	105 ░C	Tin	38	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1	76	Non Specified - Dual Edge	2	Green	Solder Eyelet(s)	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.25
Newark	Each	1	$ 22.63
		100	$ 13.64
		250	$ 10.60
		500	$ 9.64
		1000	$ 8.27

Description

General part information

316-038 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
