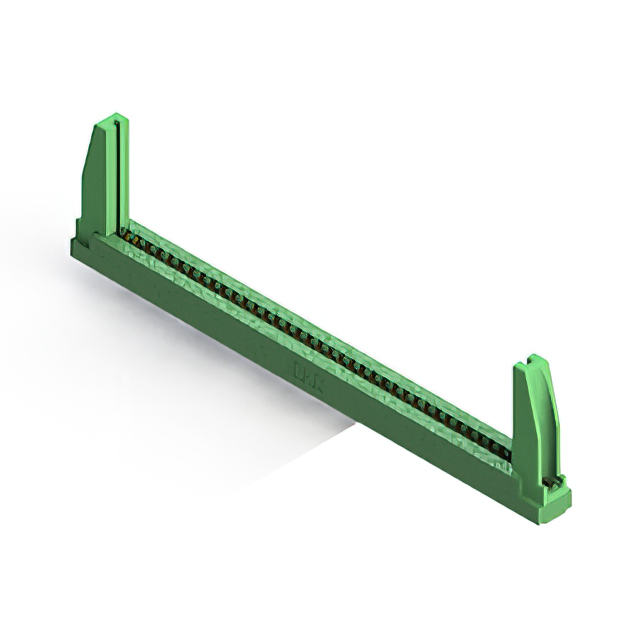

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
316-038-520-178
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-038-520-178 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-038 Series
| Part | Gender | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Contact Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Number of Positions | Card Type | Number of Rows | Color | Termination | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Gold | 38 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Gold | 38 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | Female | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Tin | 38 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Card Guides | |||||
EDAC Inc. | Female | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Tin | 38 | Flush Mount M3 Threaded Insert Top Opening | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | |||||
EDAC Inc. | Female | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Tin | 38 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Gold | 38 | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | ||||
EDAC Inc. | Female | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Tin | 38 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Card Guides | ||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Panel Mount Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Gold | 38 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Through Hole | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Gold | 38 | 1 | 38 | Non Specified - Dual Edge | 2 | Green | Solder | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | ||||
EDAC Inc. | Female | Dual | Copper Alloy | Cantilever | -40 °C | 105 ░C | Tin | 38 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1 | 76 | Non Specified - Dual Edge | 2 | Green | Solder Eyelet(s) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-038 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
