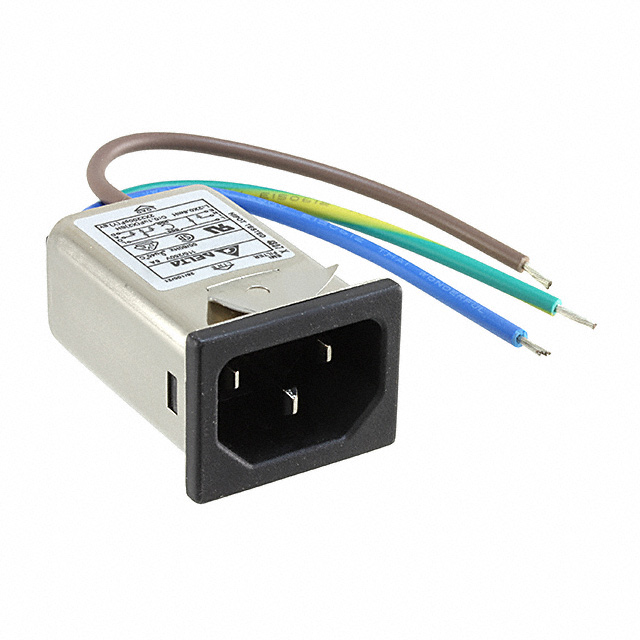

06GENW3E

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

06GENW3E

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	06GENW3E

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.81 mm
Panel Thickness [Min]	0.032 in
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

06GENW Series

Part	Current Rating - Appliance Inlet	Current Rating - Filter	Connector Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Approval Agency	Connector Style	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Termination	Mounting Type	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Delta Electronics 06GENW3QM-R	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial Medical	Wire Leads	Panel Mount Snap-In	Bleed Resistor
Delta Electronics 06GENW3EM-R(H)	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial Medical	Wire Leads	Panel Mount Snap-In	Bleed Resistor Mounting Clip	29.5 mm	21.5 mm
Delta Electronics 06GENW3E	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial	Wire Leads	Panel Mount Snap-In
Delta Electronics 06GENW3QM-R(H)	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial Medical	Wire Leads	Panel Mount Snap-In	Bleed Resistor Mounting Clip	29.5 mm	21.5 mm
Delta Electronics 06GENW3EM-R	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial Medical	Wire Leads	Panel Mount Snap-In	Bleed Resistor
Delta Electronics 06GENW3QM	6 A	6 A	Male Blades Receptacle	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA UL VDE	IEC 320-C14	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial Medical	Wire Leads	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

06GENW Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
