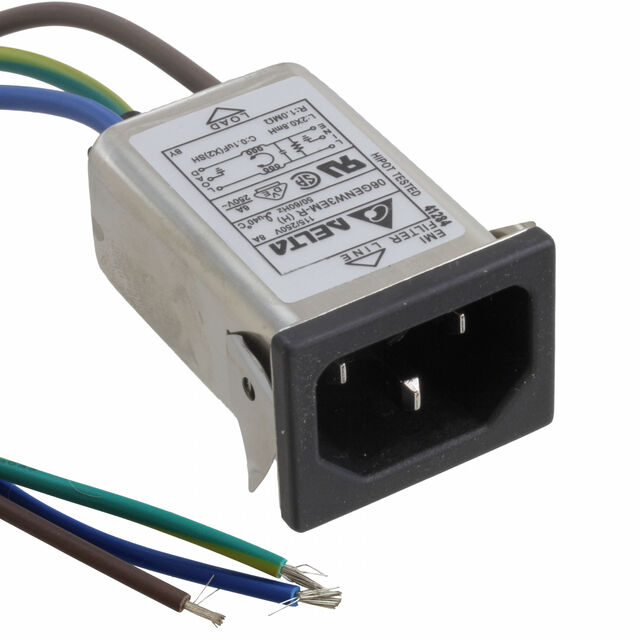

06GENW3EM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06GENW3EM-R(H)
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 06GENW3EM-R(H) |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Features | Mounting Clip, Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29.5 mm |
| Panel Cutout Dimensions [y] | 21.5 mm |
| Panel Thickness [Max] | 0.063 in |
| Panel Thickness [Max] | 1.6 mm |
| Panel Thickness [Min] | 0.81 mm |
| Panel Thickness [Min] | 0.032 in |
| Termination | Wire Leads |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
06GENW Series
| Part | Current Rating - Appliance Inlet | Current Rating - Filter | Accomodates a Fuse | Connector Type | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Approval Agency | Connector Style | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Filter Type | Termination | Mounting Type | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | Wire Leads | Panel Mount Snap-In | Bleed Resistor | |||
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | Wire Leads | Panel Mount Snap-In | Bleed Resistor Mounting Clip | 29.5 mm | 21.5 mm | |
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial | Wire Leads | Panel Mount Snap-In | ||||
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | Wire Leads | Panel Mount Snap-In | Bleed Resistor Mounting Clip | 29.5 mm | 21.5 mm | |
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | Wire Leads | Panel Mount Snap-In | Bleed Resistor | |||
Delta Electronics | 6 A | 6 A | Male Blades Receptacle | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | CSA UL VDE | IEC 320-C14 | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | Wire Leads | Panel Mount Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
06GENW Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
