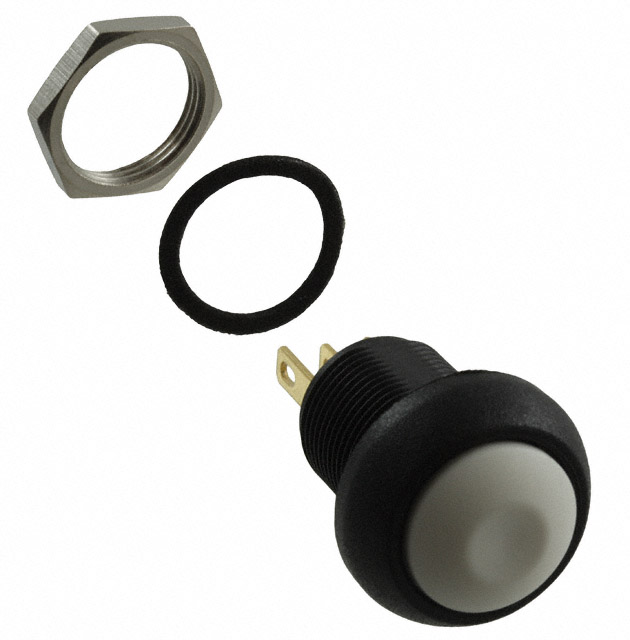

IMR7Z472

Active

APEM

SWITCH PUSHBUTTON SPDT 3A 28V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPDT 3A 28V

Technical Specifications

Parameters and characteristics for this part

Specification	IMR7Z472

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Standard
Voltage Rating - DC	28 V

Part	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Features	Actuator Type	Type	Mechanical Life	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Ingress Protection	Electrical Life	Actuator Marking	Mounting Type
APEM IMR7Z412	On-Mom	28 V	13.6 mm	3 A	Epoxy Sealed Terminals	Button Domed Round	Standard	1000000 Cycles	SPDT	Quick Connect - 0.110" (2.8mm)	85 °C	-40 °C	Blue	IP67 - Dust Tight Waterproof	25000 Steps	No Marking	Panel Mount Front
APEM IMR7Z472104	On-Mom	28 V	13.6 mm	3 A	Epoxy Sealed Terminals	Button Domed Round	Standard	1000000 Cycles	SPDT	Quick Connect - 0.110" (2.8mm)	85 °C	-40 °C	White	IP67 - Dust Tight Waterproof	25000 Steps	No Marking	Panel Mount Front
APEM IMR7Z422	On-Mom	28 V	13.6 mm	3 A	Epoxy Sealed Terminals	Button Domed Round	Standard	1000000 Cycles	SPDT	Quick Connect - 0.110" (2.8mm)	85 °C	-40 °C	Black	IP67 - Dust Tight Waterproof	25000 Steps	No Marking	Panel Mount Front
APEM IMR7Z472	On-Mom	28 V	13.6 mm	3 A	Epoxy Sealed Terminals	Button Domed Round	Standard	1000000 Cycles	SPDT	Quick Connect - 0.110" (2.8mm)	85 °C	-40 °C	White	IP67 - Dust Tight Waterproof	25000 Steps	No Marking	Panel Mount Front
APEM IMR7Z4B2234	On-Mom	28 V	13.6 mm	3 A	Epoxy Sealed Terminals	Button Domed Round	Standard	1000000 Cycles	SPDT	Quick Connect - 0.110" (2.8mm)	85 °C	-40 °C	Blue Dark	IP67 - Dust Tight Waterproof	25000 Steps	No Marking	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 23.61

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
