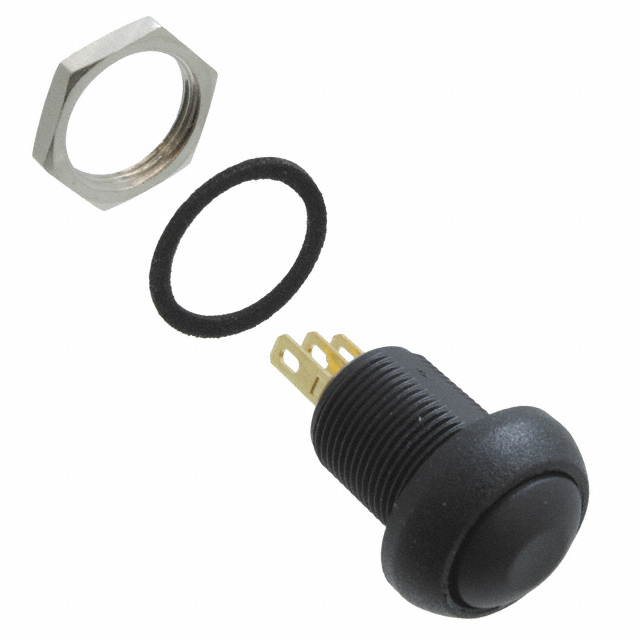

IMR7Z422
ActiveAPEM
SWITCH PUSHBUTTON SPDT 3A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMR7Z422
ActiveAPEM
SWITCH PUSHBUTTON SPDT 3A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMR7Z422 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Domed, Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 13.6 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.67 | |
| 10 | $ 21.29 | |||
| 25 | $ 20.07 | |||
| 50 | $ 19.19 | |||
| 100 | $ 18.35 | |||
| 250 | $ 17.96 | |||
Description
General part information
IMR7Z Series
Pushbutton Switch SPDT Standard Panel Mount, Front
