MS3102E28-11P

Active

Amphenol Industrial Operations

CONN RCPT MALE 22P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

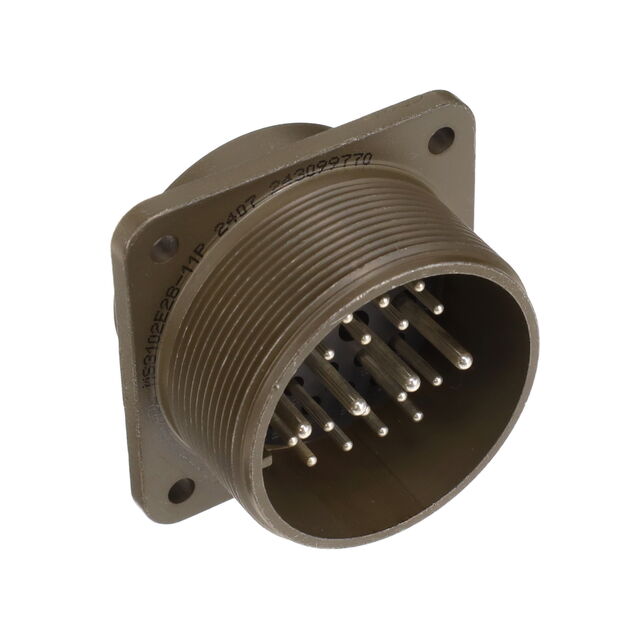

MS3102E28-11P

Active

Amphenol Industrial Operations

CONN RCPT MALE 22P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E28-11P

Applications	Military, Marine
Cable Opening [custom]	1.625 in
Cable Opening [custom]	41.28 mm
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	22 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	28-11
Shielding	Unshielded

MS3102E28 Series

Part	Number of Positions	Primary Material	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature	Applications	Shielding	Color	Qualification	Insert Material	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Grade	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Voltage Rating	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations MS3102E28-AYPY	9	Metal	Y	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver	28-AY	Environment Resistant
Amphenol Industrial Operations MS3102E28-20P	14	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 23 A	28	20
Amphenol Industrial Operations MS3102E28-8P
Amphenol Industrial Operations MS3102E28-22SY	6	Metal	Y	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver		Environment Resistant					28	22
Amphenol Industrial Operations MS3102E28-20S	14	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 23 A	28	20
Amphenol Industrial Operations MS3102E28-22P	6	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 80 A			28	22	900 VAC 1250 VDC
Amphenol Industrial Operations MS3102E28-10P	7	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver	28-10	Environment Resistant
Amphenol Industrial Operations MS3102E28-11P	22 positions	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver	28-11	Environment Resistant
Amphenol Industrial Operations MS3102E28-16S	20	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver		Environment Resistant			16	28
Amphenol Industrial Operations MS3102E28-18P	12	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A						28	18
