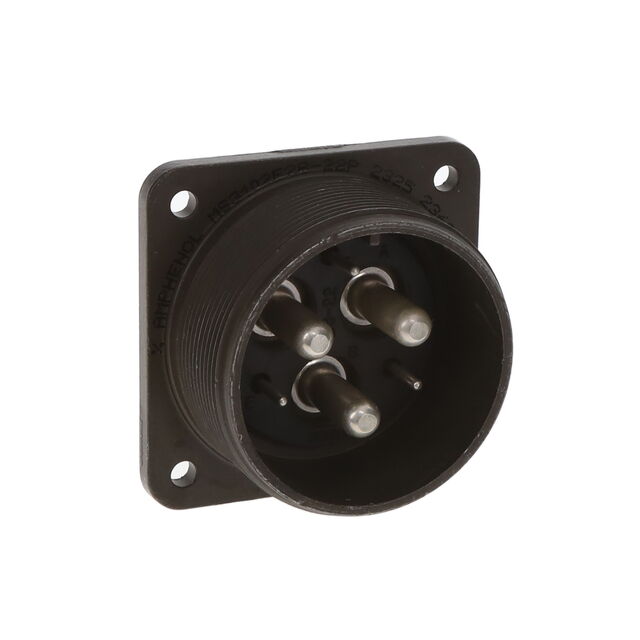

MS3102E28-22P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102E28-22P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E28-22P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	80 A, 13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [custom]	28
Shell Size - Insert [Min] [custom]	22
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3102E28 Series

Part	Number of Positions	Primary Material	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature	Applications	Shielding	Color	Qualification	Insert Material	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Grade	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Voltage Rating	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations MS3102E28-AYPY	9	Metal	Y	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver	28-AY	Environment Resistant
Amphenol Industrial Operations MS3102E28-20P	14	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 23 A	28	20
Amphenol Industrial Operations MS3102E28-8P
Amphenol Industrial Operations MS3102E28-22SY	6	Metal	Y	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver		Environment Resistant					28	22
Amphenol Industrial Operations MS3102E28-20S	14	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 23 A	28	20
Amphenol Industrial Operations MS3102E28-22P	6	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A 80 A			28	22	900 VAC 1250 VDC
Amphenol Industrial Operations MS3102E28-10P	7	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver	28-10	Environment Resistant
Amphenol Industrial Operations MS3102E28-11P	22 positions	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver	28-11	Environment Resistant
Amphenol Industrial Operations MS3102E28-16S	20	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	1.625 in	41.28 mm	Flange	Marine Military	Unshielded	Olive Drab	MIL-5015	Neoprene	Silver		Environment Resistant			16	28
Amphenol Industrial Operations MS3102E28-18P	12	Metal	N	Aluminum Alloy	-55 °C	125 °C	Copper Alloy	Olive Drab Chromate over Cadmium	Male Pins Receptacle			Flange	Marine Military	Unshielded	Olive Drab	MIL-DTL-5015	Neoprene	Silver		Environment Resistant	Military	13 A						28	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 30.08
		10	$ 26.34
		25	$ 25.20
		50	$ 24.39
		100	$ 23.58
		250	$ 22.28

Description

General part information

MS3102E28 Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup
