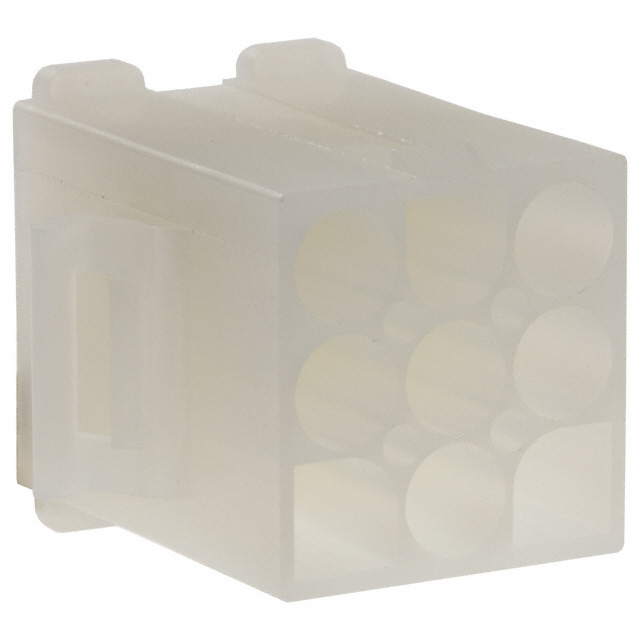

0019092098

Active

Molex

CONN HOUSING PL 9 POS 6.7MM CRIMP ST PANEL MOUNT NATURAL BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0019092098

Active

Molex

CONN HOUSING PL 9 POS 6.7MM CRIMP ST PANEL MOUNT NATURAL BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0019092098

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.264 in
Pitch [x]	6.71 mm
Row Spacing	6.71 mm
Row Spacing	0.264 in

001909 Series

Part	Note	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Insulation Material	Mounting Type	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Row Spacing	Row Spacing	Number of Positions	Features
Molex 0019092037	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug
Molex 0019092158	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	15
Molex 0019092035	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)		Male or Female	-40 °C	105 ░C	Natural	Plug				Mounting Flange
Molex 0019092029	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug			2
Molex 0019091039	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Latch Lock	Male or Female	-40 °C	105 ░C	Natural	Receptacle
Molex 0019091042	Contacts Not Included	1	0.248 in	6.3 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Receptacle			4
Molex 0019091032	Contacts Not Included	1	0.248 in	6.3 mm	Crimp		Free Hanging (In-Line)	Locking Ramp	Male or Female			Natural	Receptacle
Molex 0019092098	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	9
Molex 0019092099	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	9
Molex 0019091091	Contacts Not Included	3	0.248 in	6.3 mm	Crimp		Panel Mount Snap-In	Locking Ramp	Male or Female			Natural	Receptacle	6.3 mm	0.248 in	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.43
Digikey	Bulk	1	$ 1.12
		10	$ 0.93
		100	$ 0.77
		1600	$ 0.58
		3200	$ 0.56

Description

General part information

001909 Series

9 Rectangular Connectors - Housings Plug Natural 0.264" (6.71mm)
