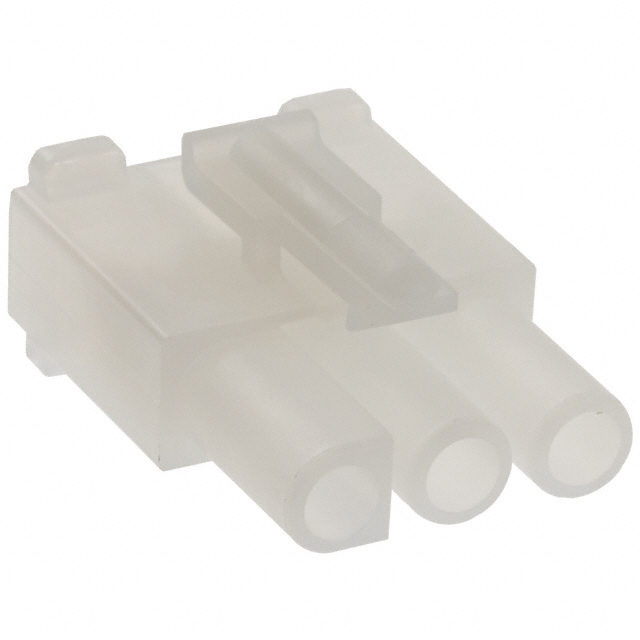

0019091039

Active

Molex

CONN RCPT HSG 3POS 6.71MM

Deep-Dive with AI

Search across all available documentation for this part.

0019091039

Active

Molex

CONN RCPT HSG 3POS 6.71MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0019091039

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.264 in
Pitch [x]	6.71 mm

001909 Series

Part	Note	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Insulation Material	Mounting Type	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Row Spacing	Row Spacing	Number of Positions	Features
Molex 0019092037	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug
Molex 0019092158	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	15
Molex 0019092035	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)		Male or Female	-40 °C	105 ░C	Natural	Plug				Mounting Flange
Molex 0019092029	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug			2
Molex 0019091039	Contacts Not Included	1	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Latch Lock	Male or Female	-40 °C	105 ░C	Natural	Receptacle
Molex 0019091042	Contacts Not Included	1	0.248 in	6.3 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Receptacle			4
Molex 0019091032	Contacts Not Included	1	0.248 in	6.3 mm	Crimp		Free Hanging (In-Line)	Locking Ramp	Male or Female			Natural	Receptacle
Molex 0019092098	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Panel Mount Snap-In	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	9
Molex 0019092099	Contacts Not Included	3	0.264 in	6.71 mm	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Locking Ramp	Male or Female	-40 °C	105 ░C	Natural	Plug	6.71 mm	0.264 in	9
Molex 0019091091	Contacts Not Included	3	0.248 in	6.3 mm	Crimp		Panel Mount Snap-In	Locking Ramp	Male or Female			Natural	Receptacle	6.3 mm	0.248 in	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.39
		100	$ 0.30
		1500	$ 0.23
		3000	$ 0.22

Description

General part information

001909 Series

3 Rectangular Connectors - Housings Receptacle Natural 0.264" (6.71mm)

Documents

Technical documentation and resources

No documents available
