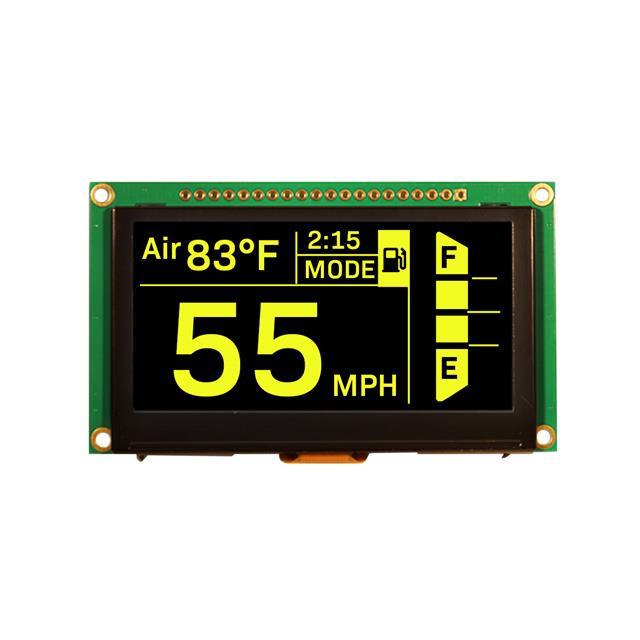

NHD-2.7-12864WDY3

Active

Newhaven Display Intl

LCD OLED GRAPHIC 128 X 64 YLW

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD OLED GRAPHIC 128 X 64 YLW

Technical Specifications

Parameters and characteristics for this part

Part	Graphics Color	Interface	Dot Pixels [y]	Dot Pixels [x]	Display Type	Dot Size [y]	Dot Size [x]	Dot Pitch [y]	Dot Pitch [x]	Background Color	Backlight	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [x]	Viewing Area [y]	Controller Type
Newhaven Display Intl NHD-2.7-12864UMY3	Yellow	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm	Black	Without Backlight	2.7 "	68.58 mm
Newhaven Display Intl NHD-2.7-12864WDY3	Yellow	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDW3	White	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDW3-M	White	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDY3-M	Yellow	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm		Without Backlight	2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864UCY3	Yellow	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm	Black	Without Backlight	2.7 "	68.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Yellow OLED - Passive Matrix Parallel/Serial 2.7" (68.58mm) 128 x 64

Technical documentation and resources
