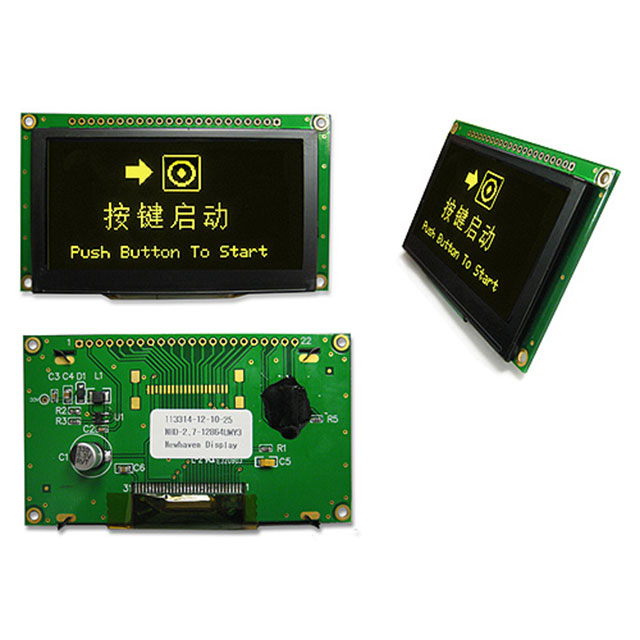

NHD-2.7-12864UMY3

Obsolete

Newhaven Display Intl

OLED GRAPH MULTIFONT YEL 2.7

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

OLED GRAPH MULTIFONT YEL 2.7

Technical Specifications

Parameters and characteristics for this part

Part	Graphics Color	Interface	Dot Pixels [y]	Dot Pixels [x]	Display Type	Dot Size [y]	Dot Size [x]	Dot Pitch [y]	Dot Pitch [x]	Background Color	Backlight	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [x]	Viewing Area [y]	Controller Type
Newhaven Display Intl NHD-2.7-12864UMY3	Yellow	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm	Black	Without Backlight	2.7 "	68.58 mm
Newhaven Display Intl NHD-2.7-12864WDY3	Yellow	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDW3	White	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDW3-M	White	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm			2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864WDY3-M	Yellow	Parallel/Serial	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm		Without Backlight	2.7 "	68.58 mm	63.41 mm	32.69 mm	SSD1322
Newhaven Display Intl NHD-2.7-12864UCY3	Yellow	8-Bit Parallel SPI	64	128	OLED - Passive Matrix	0.45 mm	0.45 mm	0.48 mm	0.48 mm	Black	Without Backlight	2.7 "	68.58 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Yellow OLED - Passive Matrix Parallel, 8-Bit, SPI 2.7" (68.58mm) 128 x 64
