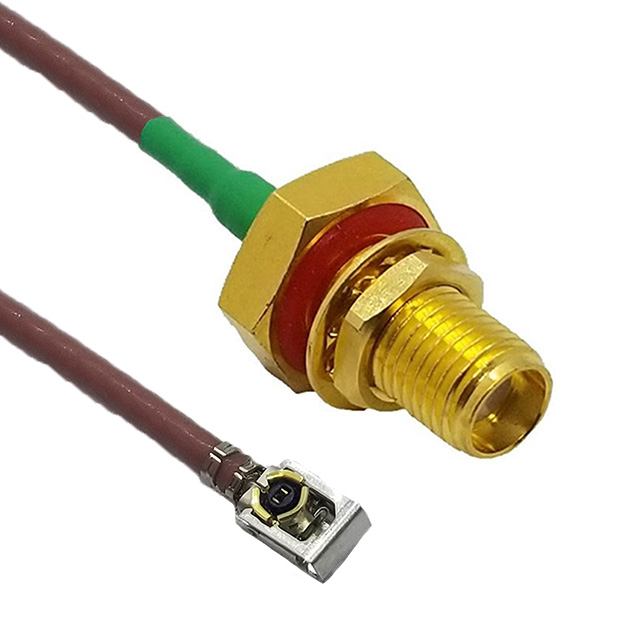

CBG-IPXLK-SAF3OGTX15-10IN
ActiveLighthorse Technologies, Inc
CBL ASY IPEX MHF1 LK-SMA J-P 10"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-IPXLK-SAF3OGTX15-10IN |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 LK (Locking) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | Locking |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 10 in |
| Length | 254 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 LK to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.78 | |
| 10 | $ 14.85 | |||
| 25 | $ 14.03 | |||
| 50 | $ 13.29 | |||
| 100 | $ 12.62 | |||
| 250 | $ 11.48 | |||
| 500 | $ 10.52 | |||
Description
General part information
CBG-IPXL Series
Cable Assembly Coaxial I-PEX MHF1 LK to SMA RG-178 10.000" (254.00mm)
