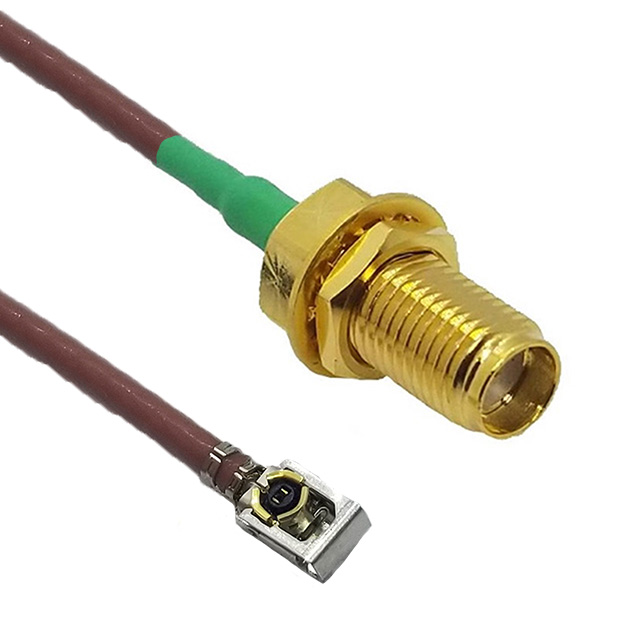

CBG-IPXLK-SAF3GT-6IN

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 LK-SMA J-P 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBG-IPXLK-SAF3GT-6IN

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 LK-SMA J-P 6"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBG-IPXLK-SAF3GT-6IN

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	IPEX MHF1 LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Brown
Features	Locking
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	IPEX MHF1 LK to SMA

CBG-IPXL Series

Part	1st Contact Gender	Length	Length	Cable Impedance	Color	Frequency - Max [Max]	Features	1st Connector Mounting Type	Cable Type	2nd Connector	Overall Impedance	2nd Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector Mounting Feature	1st Connector	2nd Connector Mounting Type	Style	Ingress Protection
Lighthorse Technologies, Inc CBG-IPXLK-SARF3GT-4IN	Male	4 in	101.6 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	IPEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	RP-SMA Jack	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-IPXLK-SAF3GT-6IN	Female	6 in	152.4 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	IPEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	SMA Jack	Free Hanging (In-Line)	IPEX MHF1 LK to SMA
Lighthorse Technologies, Inc CBG-IPXLK-SAF3OGTX15-4IN	Female	4 in	101.6 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	I-PEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	SMA Jack	Free Hanging (In-Line)	I-PEX MHF1 LK to SMA	IP67 - Dust Tight Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SAF3OGTX15-10IN	Female	10 in	254 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	I-PEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	SMA Jack	Free Hanging (In-Line)	I-PEX MHF1 LK to SMA	IP67 - Dust Tight Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SARF3GT-6IN	Male	6 in	152.4 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	IPEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	RP-SMA Jack	Free Hanging (In-Line)
Lighthorse Technologies, Inc CBG-IPXLK-SARF3OGTX9-6IN	Male	6 in	152.4 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	I-PEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	RP-SMA Jack	Free Hanging (In-Line)	I-PEX MHF1 LK to RP-SMA	IP67 - Dust Tight Waterproof
Lighthorse Technologies, Inc CBG-IPXLK-SARF3OGTX9-10IN	Male	10 in	254 mm	50 Ohms	Brown	3 GHz	Locking	Panel Mount	RG-178	I-PEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	Female	90 °C	-40 °C	Bulkhead - Front Side Nut	RP-SMA Jack	Free Hanging (In-Line)	I-PEX MHF1 LK to RP-SMA	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.63
		10	$ 10.95
		25	$ 10.34
		50	$ 9.80
		100	$ 9.31
		250	$ 8.46
		500	$ 7.75
		1000	$ 7.16

Description

General part information

CBG-IPXL Series

Cable Assembly Coaxial IPEX MHF1 LK to SMA RG-178 6.000" (152.40mm)

Documents

Technical documentation and resources
