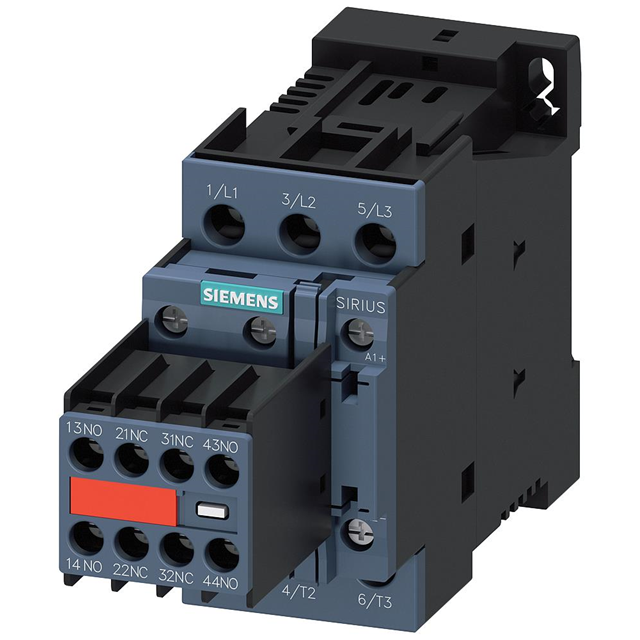

3RT20281FB443MA0
ActiveSiemens
CONTACTOR S0 38A 24VDC 2NO/2NC S
Deep-Dive with AI
Search across all available documentation for this part.
3RT20281FB443MA0
ActiveSiemens
CONTACTOR S0 38A 24VDC 2NO/2NC S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20281FB443MA0 |
|---|---|
| Coil Current | 245.8 mA |
| Coil Power | 5.9 W |
| Coil Resistance | 97.6 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 38 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 VDC |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 462.50 | |
| 10 | $ 411.75 | |||
| 25 | $ 393.11 | |||
Description
General part information
3RT2028 Series
CONTACTOR S0 38A 24VDC 2NO/2NC S
