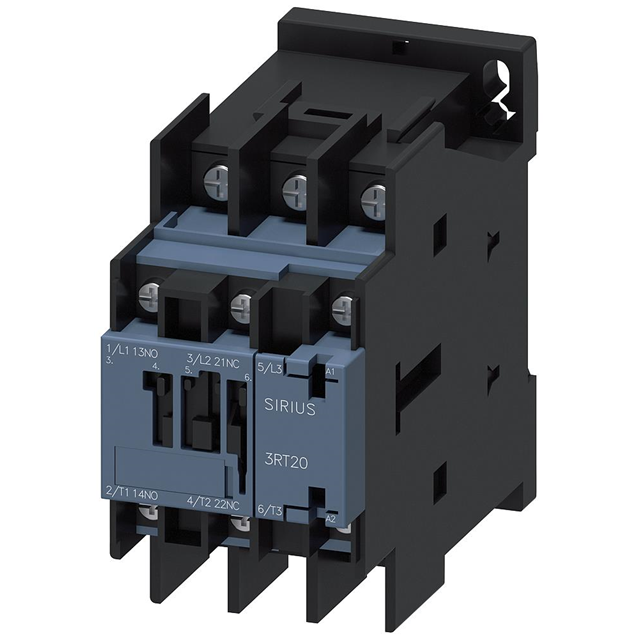

3RT20284AK60
ActiveSiemens
CONTACTOR S0 38A 120VAC 1NO/1NC
Deep-Dive with AI
Search across all available documentation for this part.
3RT20284AK60
ActiveSiemens
CONTACTOR S0 38A 120VAC 1NO/1NC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20284AK60 |
|---|---|
| Coil Power | 79 VA |
| Coil Voltage | 120 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 38 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 96 VAC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 16 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 322.38 | |
Description
General part information
3RT2028 Series
CONTACTOR S0 38A 120VAC 1NO/1NC
