56DP36-01-1-AJS

Active

Grayhill Inc.

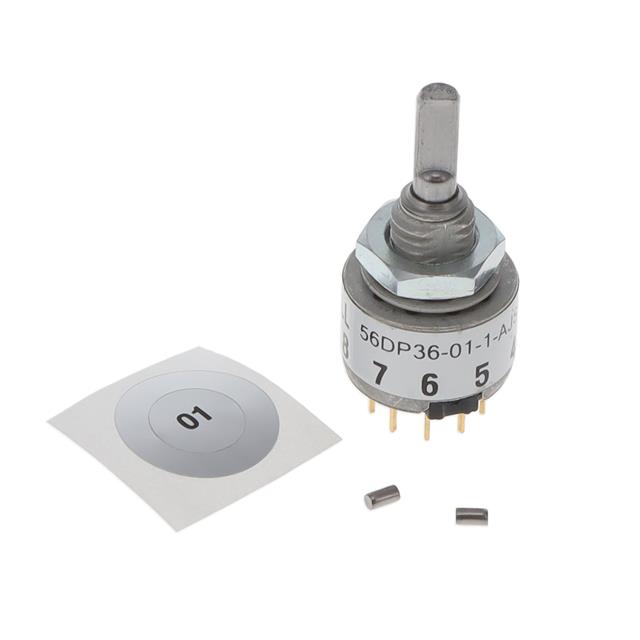

ROTARY SWITCH, 10 POSITION, 1 POLE, 36 °, 200 MA, 115 V, 56 SERIES

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY SWITCH, 10 POSITION, 1 POLE, 36 °, 200 MA, 115 V, 56 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Number of Poles per Deck	Index Stops	Contact Material	Current Rating (Amps)	Termination Style	Depth Behind Panel [z]	Contact Finish	Angle of Throw	Circuit per Deck	Number of Decks [custom]	Contact Timing	Mounting Type	Voltage Rating - AC	Actuator Length [x]	Actuator Type [diameter]	Actuator Type	Number of Positions [Max]	Number of Positions [Min]
Grayhill Inc. 56DP36-01-1-AJN	30 V	1	Adjustable	Brass	200 mA	PC Pin	9.58 mm	Silver	36 °	SP10T	1	Non-Shorting	Panel Mount Through Hole	115 V	9.53 mm	3.17 mm	Flatted
Grayhill Inc. 56DP36-01-2-AJS	30 V	2	Adjustable	Brass	200 mA	PC Pin	9.58 mm	Silver	36 °	DP5T	1	Shorting	Panel Mount Through Hole	115 V	9.53 mm	3.17 mm	Flatted	5	2
Grayhill Inc. 56DP36-01-1-AJS	30 V	1	Adjustable	Brass	200 mA	PC Pin	9.58 mm	Silver	36 °	SP10T	1	Shorting	Panel Mount Through Hole	115 V	9.53 mm	3.17 mm	Flatted
Grayhill Inc. 56DP36-01-2-AJN	30 V	2	Adjustable	Brass	200 mA	PC Pin	9.58 mm	Silver	36 °	DP5T	1	Non-Shorting	Panel Mount Through Hole	115 V	9.53 mm	3.17 mm	Flatted	5	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 10 Position SP10T 200mA (AC/DC) 115 VAC Panel Mount, Through Hole
