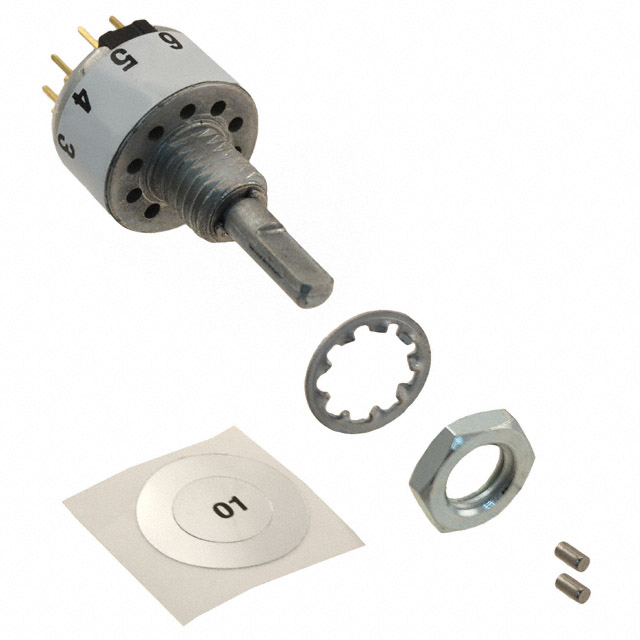

56DP36-01-2-AJN
ActiveGrayhill Inc.
SWITCH ROTARY 2-5POS 200MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56DP36-01-2-AJN
ActiveGrayhill Inc.
SWITCH ROTARY 2-5POS 200MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56DP36-01-2-AJN |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | DP5T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA |
| Depth Behind Panel [z] | 9.58 mm |
| Index Stops | Adjustable |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions [Max] | 5 |
| Number of Positions [Min] | 2 |
| Termination Style | PC Pin |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.62 | |
| 5 | $ 22.86 | |||
| 10 | $ 21.43 | |||
| 25 | $ 19.64 | |||
| 50 | $ 18.38 | |||
| 100 | $ 17.25 | |||
| 250 | $ 15.82 | |||
| 500 | $ 15.52 | |||
Description
General part information
56DP36 Series
Rotary Switch 2 ~ 5 Position DP5T 200mA (AC/DC) 115 VAC Panel Mount, Through Hole
