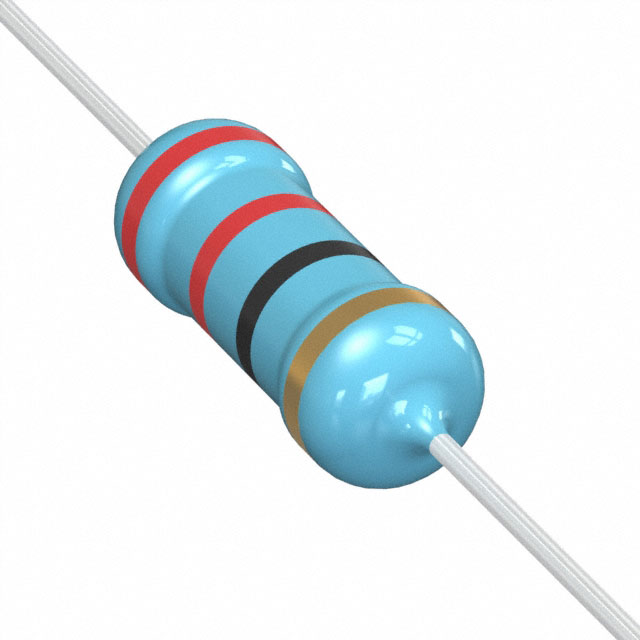

ROX5SJ22R

Active

TE Connectivity Passive Product

RES 22 OHM 5% 5W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Passive Components Selection Guide

ROX5SJ22R

Active

TE Connectivity Passive Product

RES 22 OHM 5% 5W AXIAL

Deep-Dive with AI

DocumentsDatasheet Passive Components Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ROX5SJ22R

Composition	Metal Oxide Film
Features	Flame Proof, Safety, Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	5 W
Resistance	22 Ohms
Size / Dimension [diameter]	0.315 Dia
Size / Dimension [diameter]	8 mm
Size / Dimension [x]	25 mm
Size / Dimension [x]	0.984 L
Supplier Device Package	Axial
Temperature Coefficient	350 ppm/°C
Tolerance	5 %

ROX5 Series

Part	Number of Terminations	Resistance	Composition	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Tolerance	Features	Temperature Coefficient
TE Connectivity Passive Product ROX5SSJ1K1	2	1100 Ohms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ91K	2	91 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ8K2	2	8.2 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ5K1	2	5.1 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ11K	2	11 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ24R	2	24 Ohms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ7K5	2	7.5 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ160R	2	160 Ohms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SSJ2K7	2	2.7 kOhms	Metal Oxide Film	0.689 in	6.5 mm	17.5 mm	0.256 in	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C
TE Connectivity Passive Product ROX5SJ22R	2	22 Ohms	Metal Oxide Film	0.984 L	8 mm	25 mm	0.315 Dia	Axial	Axial	-55 °C	200 °C	5 W	5 %	Flame Proof Pulse Withstanding Safety	350 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.55
		10	$ 0.39
		80	$ 0.30
		230	$ 0.26
		440	$ 0.26

Description

General part information

ROX5 Series

22 Ohms ±5% 5W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
