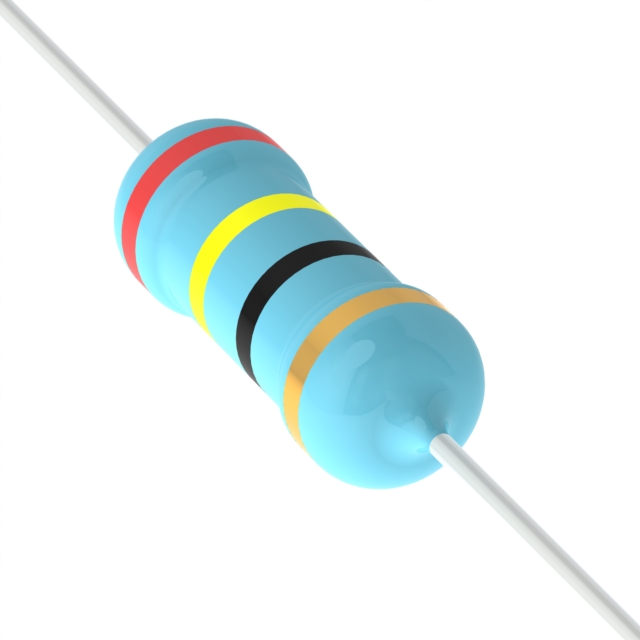

ROX5SSJ24R
ActiveTE Connectivity Passive Product
RES 24 OHM 5% 5W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ROX5SSJ24R
ActiveTE Connectivity Passive Product
RES 24 OHM 5% 5W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ROX5SSJ24R |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 5 W |
| Resistance | 24 Ohms |
| Size / Dimension [diameter] | 6.5 mm |
| Size / Dimension [diameter] | 0.256 in |
| Size / Dimension [x] | 0.689 in |
| Size / Dimension [x] | 17.5 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| Tape & Box (TB) | 500 | $ 0.16 | ||
Description
General part information
ROX5 Series
24 Ohms ±5% 5W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
