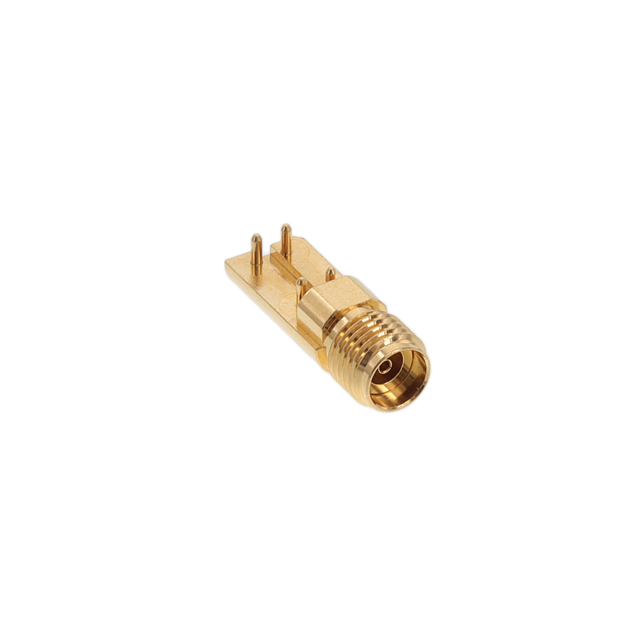

TMB-E9FS-1ST

Active

CarlisleIT

2.92(F)STR,EL,SMT,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

2.92(F)STR,EL,SMT,SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E9FS-1ST

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.38 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	400 V

Part	Insertion Loss	Body Finish	Center Contact Material	Housing Color	Shield Termination	Mating Cycles	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Voltage Rating	Body Material	Number of Ports	Frequency - Max [Max]	Connector Style	Dielectric Material	Impedance	Mounting Type	Center Contact Plating	Features
CarlisleIT TMB-E9FS-1ST	0.38 dB	White Bronze	Beryllium Copper	Silver	Solder	500	Female Socket Jack	85 °C	-55 °C	Solder	400 V	Brass	1	40 GHz	2.92 mm	Polytetrafluoroethylene (PTFE)	50 Ohms	Board Edge End Launch
CarlisleIT TMB-E9F2-1L1	0.2 dB		Beryllium Copper	Silver	Screw	500	Female Socket Jack	165 °C	-65 ░C	Compression	400 V	Stainless Steel	1	40 GHz	2.92 mm		50 Ohms	Board Edge End Launch	Gold	Field Replaceable For Hermetically Sealed Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
