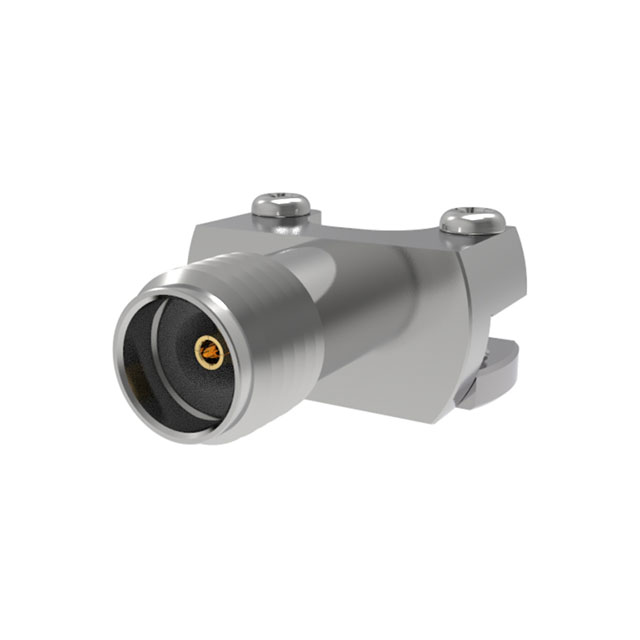

TMB-E9F2-1L1

Active

CarlisleIT

2.92(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

2.92(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E9F2-1L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	400 V

Part	Insertion Loss	Body Finish	Center Contact Material	Housing Color	Shield Termination	Mating Cycles	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Voltage Rating	Body Material	Number of Ports	Frequency - Max [Max]	Connector Style	Dielectric Material	Impedance	Mounting Type	Center Contact Plating	Features
CarlisleIT TMB-E9FS-1ST	0.38 dB	White Bronze	Beryllium Copper	Silver	Solder	500	Female Socket Jack	85 °C	-55 °C	Solder	400 V	Brass	1	40 GHz	2.92 mm	Polytetrafluoroethylene (PTFE)	50 Ohms	Board Edge End Launch
CarlisleIT TMB-E9F2-1L1	0.2 dB		Beryllium Copper	Silver	Screw	500	Female Socket Jack	165 °C	-65 ░C	Compression	400 V	Stainless Steel	1	40 GHz	2.92 mm		50 Ohms	Board Edge End Launch	Gold	Field Replaceable For Hermetically Sealed Pin
