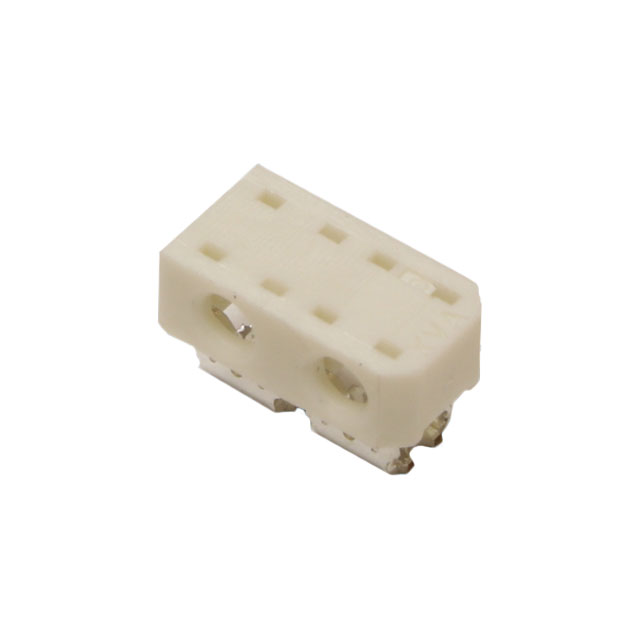

009176002884906
ActiveKyocera AVX
CONN WIRE IDC 2POS 28AWG SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009176002884906
ActiveKyocera AVX
CONN WIRE IDC 2POS 28AWG SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 009176002884906 |
|---|---|
| Board-Side Pitch | 0.126 in |
| Board-Side Pitch | 3.2 mm |
| Cable Pitch [custom] | 0.126 in |
| Cable Pitch [custom] | 3.2 mm |
| Cable Termination | IDC |
| Color | White |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | Stranded or Solid |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.89 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.89 | ||
| 10 | $ 0.68 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| Tape & Reel (TR) | 1700 | $ 0.38 | ||
| 3400 | $ 0.36 | |||
| 5100 | $ 0.34 | |||
| 8500 | $ 0.33 | |||
| 11900 | $ 0.32 | |||
| 17000 | $ 0.31 | |||
Description
General part information
009176 Series
2 Position Individual Wires Connector White IDC 28 AWG, Stranded or Solid Surface Mount
