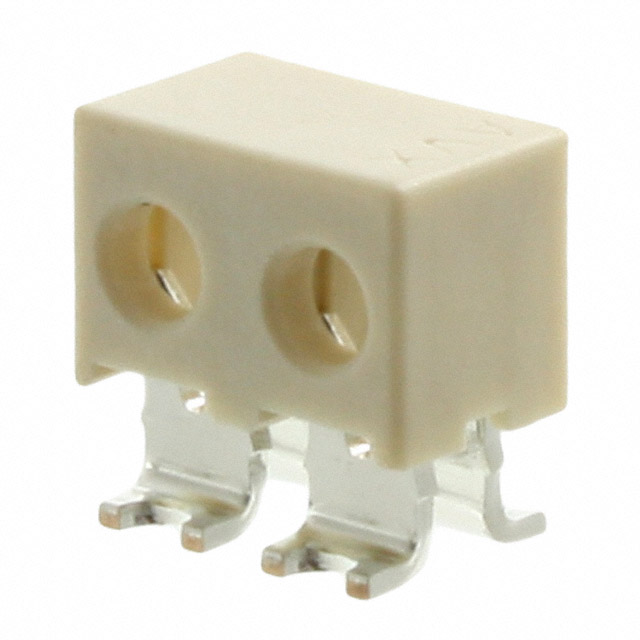

009176002711106

Active

Kyocera AVX

CONN WIRE IDC 2POS 20AWG SMD

Search across all available documentation for this part.

Active

Kyocera AVX

CONN WIRE IDC 2POS 20AWG SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions Loaded	Features	Number of Positions	Color	Number of Rows	Mounting Type	Cable Termination	Connector Type	Contact Finish	Wire Gauge	Cable Pitch [custom]	Cable Pitch [custom]	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch	Wire Gauge
Kyocera AVX 009176001853206	All	Feed Through	1	Brown	1	Surface Mount	IDC	Individual Wires	Tin
Kyocera AVX 009176001873906	All	Feed Through	1	White	1	Surface Mount	IDC	Individual Wires	Tin	26 AWG
Kyocera AVX 009176001884306	All	Feed Through	1	Blue	1	Surface Mount	IDC	Individual Wires	Tin
Kyocera AVX 009176002863906	All	Feed Through	2	White	1	Surface Mount	IDC	Individual Wires	Tin	24 AWG	0.126 in	3.2 mm	0.126 in	3.2 mm
Kyocera AVX 009176001873806	All	Feed Through	1	Black	1	Surface Mount	IDC	Individual Wires	Tin
Kyocera AVX 009176002711106	All	Feed Through	2	White	1	Surface Mount	IDC	Individual Wires	Tin	20 AWG			0.157 in	4 mm	0.157 in	4 mm
Kyocera AVX 009176001863706	All	Feed Through	1		1	Surface Mount	IDC	Individual Wires	Tin
Kyocera AVX 009176002732196	All	Closed End	2	White	1	Surface Mount	IDC	Individual Wires	Tin	24 AWG			0.157 in	4 mm	0.157 in	4 mm
Kyocera AVX 009176001863306	All	Feed Through	1	Blue	1	Surface Mount	IDC	Individual Wires	Tin
Kyocera AVX 009176002884906	All	Feed Through	2	White	1	Surface Mount	IDC	Individual Wires	Tin	28 AWG	0.126 in	3.2 mm	0.126 in	3.2 mm			Stranded or Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Individual Wires Connector White IDC 20 AWG, Stranded Surface Mount
