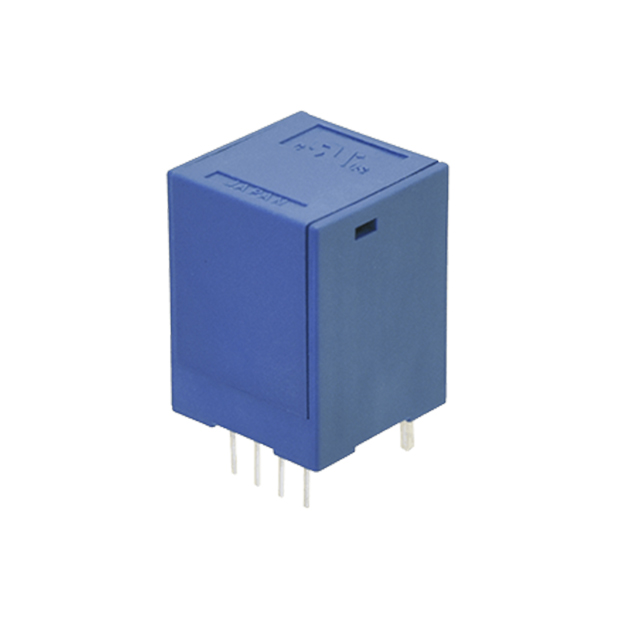

CS0305B

Active

CUI Devices

CURRENT SENSOR,OPEN LOOP,3A,+5V,

Search across all available documentation for this part.

Active

CUI Devices

CURRENT SENSOR,OPEN LOOP,3A,+5V,

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Linearity	Current - Supply (Max) [Max]	Number of Channels	Mounting Type	Polarization	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	For Measuring	Operating Temperature [Min]	Operating Temperature [Max]	Sensor Type	Response Time	Current - Sensing	Output	Frequency
CUI Devices CS0305U	Module	0.5 %	25 mA	1	Through Hole	Unidirectional	4.2 %	4.75 V	5.25 V	AC	-10 °C	75 ░C	Open Loop	7 µs	3 A	Ratiometric Voltage	DC ~ 40kHz
CUI Devices CS0305B	Module	0.5 %	25 mA	1	Through Hole	Bidirectional	2.2 %	4.75 V	5.25 V	AC	-10 °C	75 ░C	Open Loop	7 µs	3 A	Ratiometric Voltage	DC ~ 40kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Current Sensor 3A 1 Channel Open Loop Bidirectional Module
