CS0305U
ActiveCUI Devices
CURRENT SENSOR,OPEN LOOP,5A,+5VD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS0305U
ActiveCUI Devices
CURRENT SENSOR,OPEN LOOP,5A,+5VD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS0305U |
|---|---|
| Accuracy | 4.2 % |
| Current - Sensing | 3 A |
| Current - Supply (Max) [Max] | 25 mA |
| For Measuring | AC |
| Frequency | DC ~ 40kHz |
| Linearity | 0.5 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Unidirectional |
| Response Time | 7 µs |
| Sensor Type | Open Loop |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 28.78 | |
| 5 | $ 24.27 | |||
| 10 | $ 22.55 | |||
| 25 | $ 20.47 | |||
| 40 | $ 19.48 | |||
| 80 | $ 18.10 | |||
| 440 | $ 15.12 | |||
Description
General part information
CS0305 Series

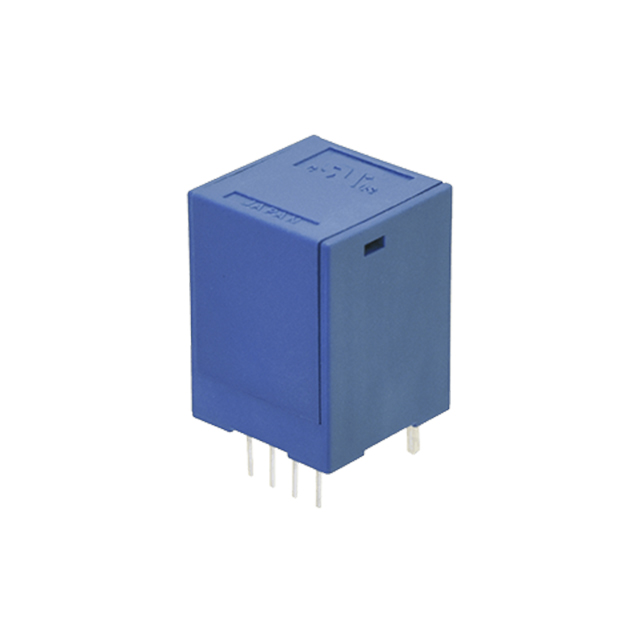

Current Sensor 3A 1 Channel Open Loop Unidirectional Module
