EP1C12F324I7

Obsolete

Altera

IC FPGA 249 I/O 324FBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 249 I/O 324FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP1C12F324I7

Mounting Type	Surface Mount
Number of I/O	249
Number of LABs/CLBs	1206
Number of Logic Elements/Cells	12060
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

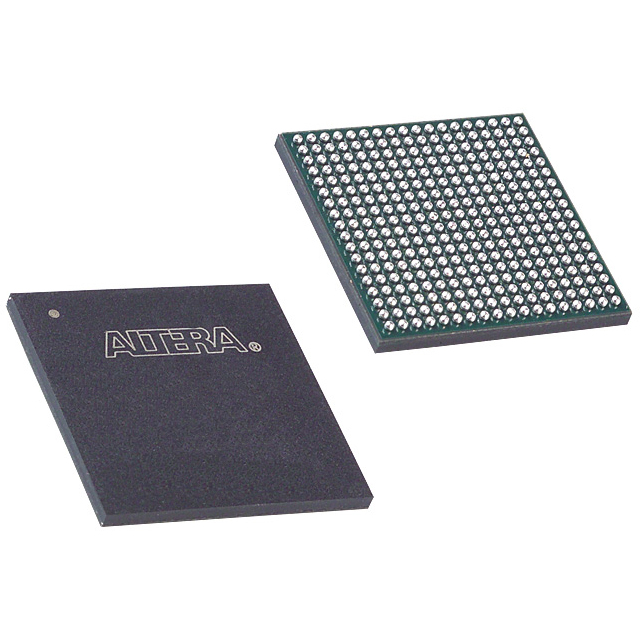

Package / Case	324-BGA
Supplier Device Package	324-FBGA (19x19)
Total RAM Bits	239616 bits
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.425 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Package / Case	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O
Altera EP1C12Q240C8	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173
Altera EP1C12F324I7	-40 C	100 °C	Surface Mount	324-FBGA (19x19)	1.575 V	1.425 V	239616 bits	324-BGA	1206	12060	249
Altera EP1C12F324C7	0 °C	85 °C	Surface Mount	324-FBGA (19x19)	1.575 V	1.425 V	239616 bits	324-BGA	1206	12060	249
Altera EP1C20F400C7	0 °C	85 °C	Surface Mount	400-FBGA (21x21)	1.575 V	1.425 V	294912	400-BGA		20060	301 I/O
Altera EP1C12Q240C6	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173
Altera EP1C20F400C7N	0 °C	85 °C	Surface Mount	400-FBGA (21x21)	1.575 V	1.425 V	294912	400-BGA		20060	301 I/O
Altera EP1C12Q240C7N	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cyclone® Field Programmable Gate Array (FPGA) IC 249 239616 12060 324-BGA
