EP1C20F400C7N

Obsolete

Altera

IC: FPGA; SMD; FBGA400; NUMBER OF MACROCELLS: 20K; I/O: 301; 320MHZ

Search across all available documentation for this part.

Obsolete

Altera

IC: FPGA; SMD; FBGA400; NUMBER OF MACROCELLS: 20K; I/O: 301; 320MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	EP1C20F400C7N

Mounting Type	Surface Mount
Number of I/O	301 I/O
Number of Logic Elements/Cells	20060
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

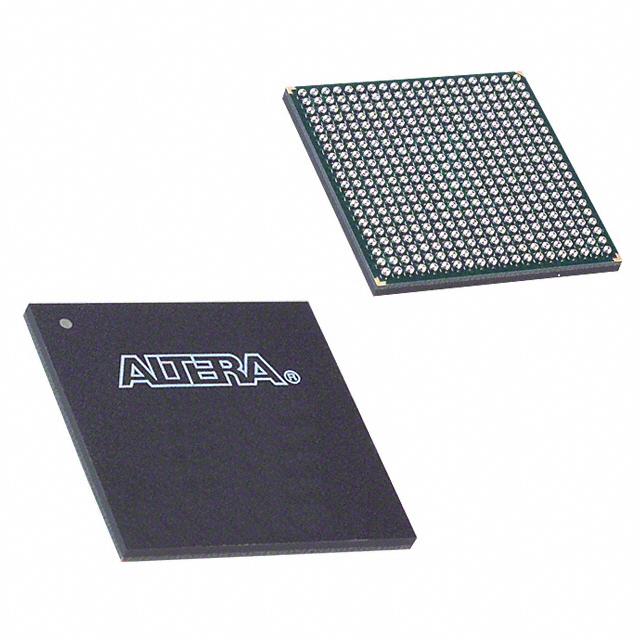

Package / Case	400-BGA
Supplier Device Package	400-FBGA (21x21)
Total RAM Bits	294912
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.425 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Total RAM Bits	Package / Case	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O
Altera EP1C12Q240C8	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173
Altera EP1C12F324I7	-40 C	100 °C	Surface Mount	324-FBGA (19x19)	1.575 V	1.425 V	239616 bits	324-BGA	1206	12060	249
Altera EP1C12F324C7	0 °C	85 °C	Surface Mount	324-FBGA (19x19)	1.575 V	1.425 V	239616 bits	324-BGA	1206	12060	249
Altera EP1C20F400C7	0 °C	85 °C	Surface Mount	400-FBGA (21x21)	1.575 V	1.425 V	294912	400-BGA		20060	301 I/O
Altera EP1C12Q240C6	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173
Altera EP1C20F400C7N	0 °C	85 °C	Surface Mount	400-FBGA (21x21)	1.575 V	1.425 V	294912	400-BGA		20060	301 I/O
Altera EP1C12Q240C7N	0 °C	85 °C	Surface Mount	240-PQFP (32x32)	1.575 V	1.425 V	239616 bits	240-BFQFP	1206	12060	173

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cyclone® Field Programmable Gate Array (FPGA) IC 301 294912 20060 400-BGA
