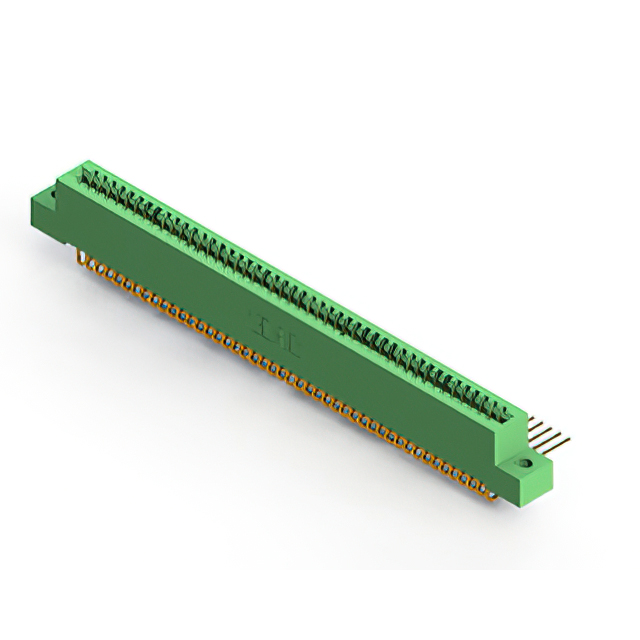

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 92 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

342-092-559-202

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 92 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-092-559-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	92
Number of Positions/Bay/Row [custom]	46
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

342-092 Series

Part	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Termination Rows	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows	Mounting Type	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 342-092-521-208	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Solder	Cantilever	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 342-092-541-208	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Wire Wrap	Cantilever	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 342-092-544-208	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Wire Wrap	Cantilever	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 342-092-520-212	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Solder	Cantilever	-40 °C	105 ░C	Flush Mount Side Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 342-092-558-207	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole Right Angle	Solder Wire Wrap	Cantilever	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 342-092-559-202	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole Right Angle	Solder Wire Wrap	Cantilever	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 342-092-520-201	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Solder	Cantilever	-40 °C	105 ░C		Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 342-092-500-212	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Solder Eyelet(s)	Cantilever	-40 °C	105 ░C	Flush Mount Side Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 342-092-558-203	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole Right Angle	Solder Wire Wrap	Cantilever	-40 °C	105 ░C	Floating Bobbin Flush Mount	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic	2.95 mm	0.116 in
EDAC Inc. 342-092-521-202	92	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	2	Green	Gold	10 Áin	0.25 Ám	Female	2	Through Hole	Solder	Cantilever	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	Non Specified - Dual Edge	46	2.54 mm	0.1 in	Polyester Thermoplastic	3.25 mm	0.128 "
