FFC2B28-12-G

Active

GCT

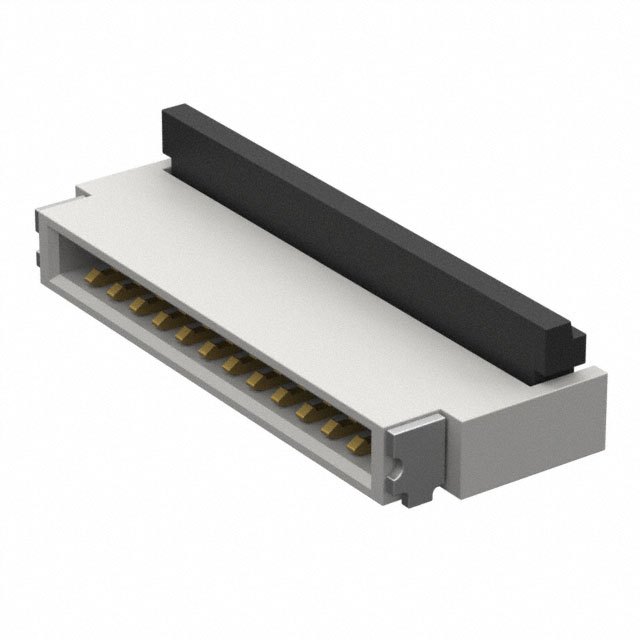

CONN FFC FPC 12POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet GCT FFC Product Slection Guide

FFC2B28-12-G

Active

GCT

CONN FFC FPC 12POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet GCT FFC Product Slection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFC2B28-12-G

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	0.2 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	30 VDC

FFC2B28 Series

Part	Voltage Rating	Pitch [x]	Pitch [x]	Actuator Color	Contact Material	FFC, FCB Thickness	Locking Feature	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Mounting Type	Mating Cycles	Current Rating (Amps)	Connector/Contact Type	Housing Color	Contact Finish	Material Flammability Rating	Flat Flex Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Termination	Number of Positions	Features	Cable End Type	Number of Positions
GCT FFC2B28-16-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder	16	Solder Retention	Tapered
GCT FFC2B28-14-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	14
GCT FFC2B28-12-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	12
GCT FFC2B28-24-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	24
GCT FFC2B28-40-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	40
GCT FFC2B28-18-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.39
		25	$ 0.35
		50	$ 0.32
		100	$ 0.30
		250	$ 0.27
		500	$ 0.25
		1000	$ 0.23
	Digi-Reel®	1	$ 0.51
		10	$ 0.39
		25	$ 0.35
		50	$ 0.32
		100	$ 0.30
		250	$ 0.27
		500	$ 0.25
		1000	$ 0.23
	Tape & Reel (TR)	4000	$ 0.20
		8000	$ 0.19
		12000	$ 0.18
		20000	$ 0.17
		28000	$ 0.17
		40000	$ 0.16

Description

General part information

FFC2B28 Series

12 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
