FFC2B28-14-G

Active

GCT

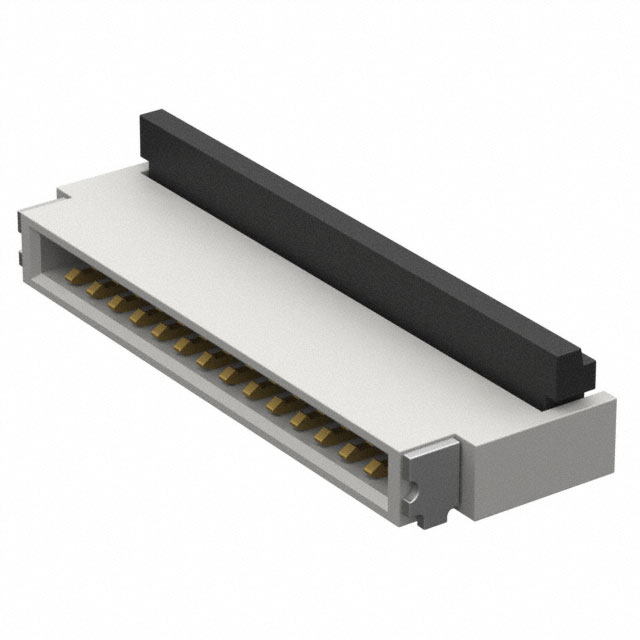

CONN FFC FPC 14POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGCT FFC Product Slection Guide Datasheet

FFC2B28-14-G

Active

GCT

CONN FFC FPC 14POS 0.5MM R/A

Deep-Dive with AI

DocumentsGCT FFC Product Slection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFC2B28-14-G

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	0.2 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	14
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	30 VDC

FFC2B28 Series

Part	Voltage Rating	Pitch [x]	Pitch [x]	Actuator Color	Contact Material	FFC, FCB Thickness	Locking Feature	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Mounting Type	Mating Cycles	Current Rating (Amps)	Connector/Contact Type	Housing Color	Contact Finish	Material Flammability Rating	Flat Flex Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Termination	Number of Positions	Features	Cable End Type	Number of Positions
GCT FFC2B28-16-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder	16	Solder Retention	Tapered
GCT FFC2B28-14-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	14
GCT FFC2B28-12-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	12
GCT FFC2B28-24-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	24
GCT FFC2B28-40-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	40
GCT FFC2B28-18-G	30 VDC	0.5 mm	0.02 in	Black	Copper Alloy	0.3 mm	Backlock Flip Lock	1 mm	0.039 in	Flash	Surface Mount Right Angle	20	0.2 A	Contacts Top and Bottom	Natural	Gold	UL94 V-0	FFC FPC	Thermoplastic	-25 °C	85 °C	Thermoplastic	Solder		Solder Retention	Tapered	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.45
		25	$ 0.41
		50	$ 0.39
		100	$ 0.37
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.26
	Digi-Reel®	1	$ 0.51
		10	$ 0.45
		25	$ 0.41
		50	$ 0.39
		100	$ 0.37
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.26
	Tape & Reel (TR)	4000	$ 0.24
		8000	$ 0.22
		12000	$ 0.21
		28000	$ 0.21

Description

General part information

FFC2B28 Series

14 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

GCT FFC Product Slection Guide

Datasheet
