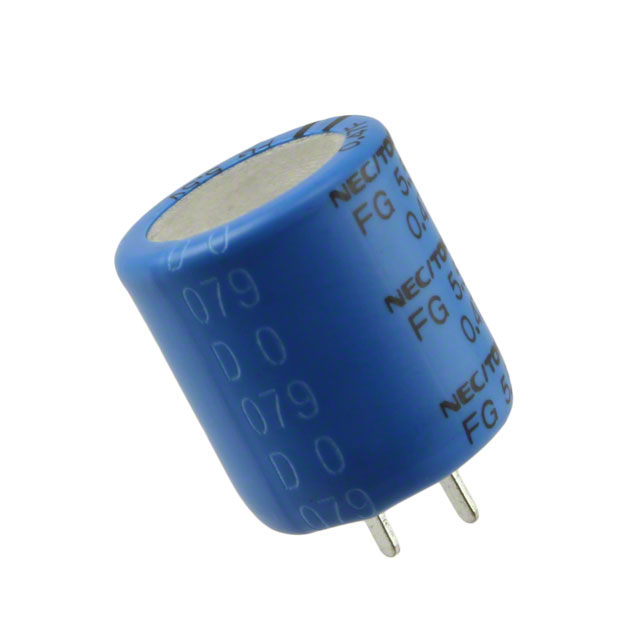

FG0H474ZF

Active

KEMET

CAP SUPERCAP 0.47F 5.5V -20% TO 80% (14.5 X 18MM) RADIAL ALUMINUM CYLINDRICAL CAN 5.08MM 120 OHM 70°C BULK

Search across all available documentation for this part.

Active

KEMET

CAP SUPERCAP 0.47F 5.5V -20% TO 80% (14.5 X 18MM) RADIAL ALUMINUM CYLINDRICAL CAN 5.08MM 120 OHM 70°C BULK

Technical Specifications

Parameters and characteristics for this part

Specification	FG0H474ZF

Capacitance	470 mF
ESR (Equivalent Series Resistance)	120 Ohm
Height - Seated (Max) [Max]	18 mm
Height - Seated (Max) [Max] [z]	0.709 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	0.571 inches
Size / Dimension [diameter]	14.5 mm
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Termination	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Tolerance [Max]	Tolerance [Min]	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max] [z]
KEMET FG0H474ZF	PC Pins	5.08 mm	0.2 in	120 Ohm	80 %	-20 %	470 mF	5.5 V	0.709 "	18 mm	Radial Can	0.571 inches	14.5 mm	70 °C	-25 °C	Through Hole
KEMET FG0H104ZF	PC Pins	5.08 mm	0.2 in	100 Ohm	80 %	-20 %	0.1 F	5.5 V	0.256 in		Radial Can	0.433 "	11 mm	70 °C	-25 °C	Through Hole	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 mF (EDLC) Supercapacitor 5.5 V Radial, Can 120Ohm @ 1kHz
