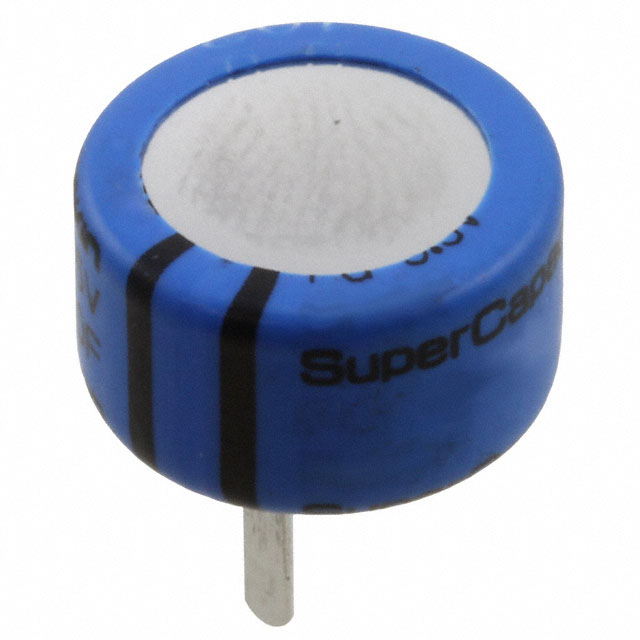

FG0H104ZF

Active

KEMET

CAP, 0.1F, 5.5V, SUPER, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 0.1F, 5.5V, SUPER, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	FG0H104ZF

Capacitance	0.1 F
ESR (Equivalent Series Resistance)	100 Ohm
Height - Seated (Max) [Max] [z]	0.256 in
Height - Seated (Max) [Max] [z]	6.5 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	11 mm
Size / Dimension [diameter]	0.433 "
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Termination	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Tolerance [Max]	Tolerance [Min]	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max] [z]
KEMET FG0H474ZF	PC Pins	5.08 mm	0.2 in	120 Ohm	80 %	-20 %	470 mF	5.5 V	0.709 "	18 mm	Radial Can	0.571 inches	14.5 mm	70 °C	-25 °C	Through Hole
KEMET FG0H104ZF	PC Pins	5.08 mm	0.2 in	100 Ohm	80 %	-20 %	0.1 F	5.5 V	0.256 in		Radial Can	0.433 "	11 mm	70 °C	-25 °C	Through Hole	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 mF (EDLC) Supercapacitor 5.5 V Radial, Can 100Ohm @ 1kHz
