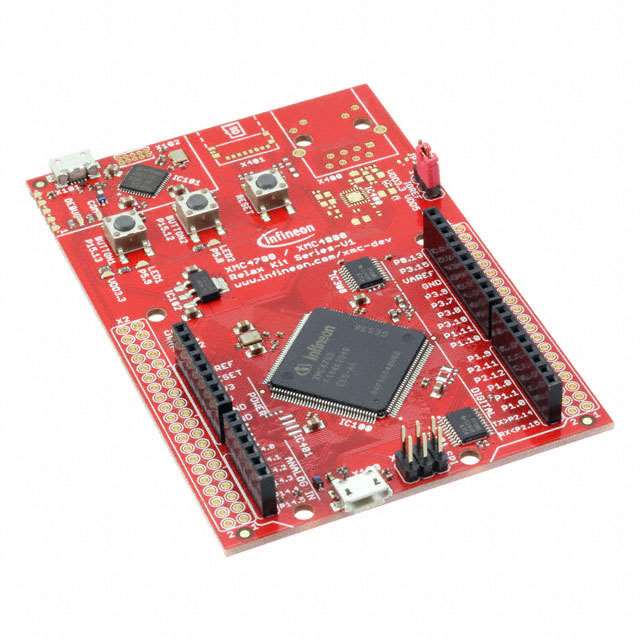

KITXMC47RELAX5VADV1TOBO1

Active

Infineon Technologies

EVAL RELAX KIT, 32-BIT ARM CORTEX-M4 MCU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN

KITXMC47RELAX5VADV1TOBO1

Active

Infineon Technologies

EVAL RELAX KIT, 32-BIT ARM CORTEX-M4 MCU

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KITXMC47RELAX5VADV1TOBO1

Board Type	Evaluation Platform
Contents	Board(s)
Core Processor	ARM® Cortex®-M4
Interconnect System	Arduino R3 Shield
Mounting Type	Fixed
Platform	Relax Kit for 5V Shields
Suggested Programming Environment	Arduino
Type	MCU 32-Bit
Utilized IC / Part	XMC4700

XMC4700 Series

Part	Core Size	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Size	Oscillator Type	Program Memory Type	Number of I/O	Connectivity	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Peripherals	Speed	Core Processor	RAM Size	Data Converters	Contents	Interconnect System	Suggested Programming Environment	Type	Board Type	Utilized IC / Part	Platform
Infineon Technologies XMC4700E196F1536AAXQMA1	32-Bit Single-Core	PG-LFBGA-196-2	196-LFBGA	85 °C	-40 °C	1.5 MB	External	FLASH	155 I/O	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD SPI UART/USART USB OTG USIC	3.13 V	3.63 V	Surface Mount	DMA I2S LED POR Touch-Sense WDT	144 MHz	ARM® Cortex®-M4	276 K	A/D 32x12b D/A 2x12b
Infineon Technologies KITXMC47RELAX5VADV1TOBO1													Fixed			ARM® Cortex®-M4			Board(s)	Arduino R3 Shield	Arduino	MCU 32-Bit	Evaluation Platform	XMC4700	Relax Kit for 5V Shields
Infineon Technologies XMC4700E196F2048AAXQMA1	32-Bit Single-Core	PG-LFBGA-196-2	196-LFBGA	85 °C	-40 °C	2 MB	External	FLASH	155 I/O	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD SPI UART/USART USB OTG USIC	3.13 V	3.63 V	Surface Mount	DMA I2S LED POR Touch-Sense WDT	144 MHz	ARM® Cortex®-M4	352 K	A/D 32x12b D/A 2x12b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.14
Newark	Each	1	$ 41.48

Description

General part information

XMC4700 Series

ModusToolbox™ software supports application development using the XMC4700 evaluation kit by providing board support package (BSP) and validated code examples to help you get started. To download the latest version of the software, please visit theModusToolbox™ webpage.
