XMC4700E196F1536AAXQMA1
ActiveIC MCU 32BIT 1.5MB FLSH 196LFBGA
Deep-Dive with AI
Search across all available documentation for this part.
XMC4700E196F1536AAXQMA1
ActiveIC MCU 32BIT 1.5MB FLSH 196LFBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XMC4700E196F1536AAXQMA1 |
|---|---|
| Connectivity | SPI, CANbus, USB OTG, Ethernet, LINbus, UART/USART, I2C, EBI/EMI, USIC, MMC/SD |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 2x12b, A/D 32x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 155 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |

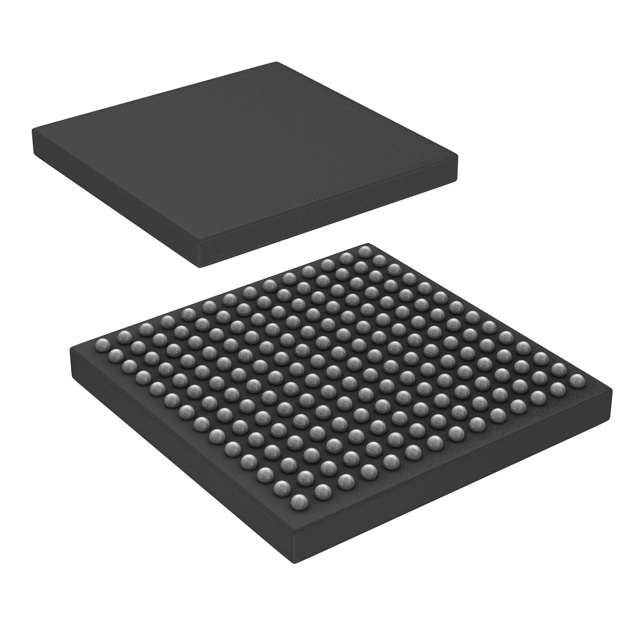

| Package / Case | 196-LFBGA |
| Peripherals | Touch-Sense, DMA, WDT, I2S, POR, LED |
| Program Memory Size | 1.5 MB |
| Program Memory Type | FLASH |
| RAM Size | 276 K |
| Speed | 144 MHz |
| Supplier Device Package | PG-LFBGA-196-2 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.63 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3.13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.73 | |
| 10 | $ 17.22 | |||
| 25 | $ 16.50 | |||
| 189 | $ 14.54 | |||
| 378 | $ 13.83 | |||
| 567 | $ 12.94 | |||
Description
General part information
XMC4700 Series
The XMC4700 device is a member of the XMC4000 family of microcontrollers based on the ARM Cortex-M4 processor core. The growing complexity of today's energy efficient embedded control applications are demanding microcontroller solutions with higher performance CPU cores featuring DSP and FPU capabilities. The XMC4700 family of microcontrollers take advantage of Infineon's decades of experience in the industrial market to provide an optimized solution to meet the performance challenges of today's embedded control applications.
