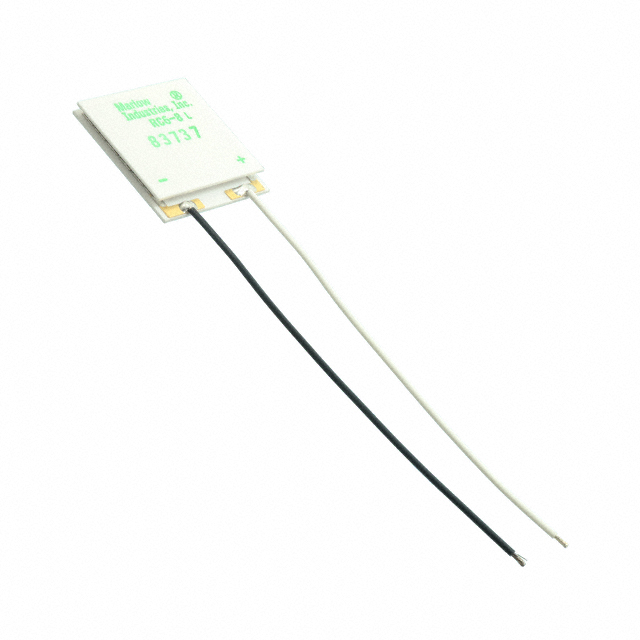

RC6-8-01L

Active

Marlow Industries, Inc.

TEM 29.97X29.97X3.53MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 29.97X29.97X3.53MM

Technical Specifications

Parameters and characteristics for this part

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Voltage - Max [Max]	Resistance	Current - Max [Max]	Delta Tmax @ Th	Number of Stages	Height [z]	Qmax @ Th
Marlow Industries, Inc. RC6-8-01L	Lapped Lead Wires	34.04 mm	29.97 mm	130 °C	8.2 V	900 mOhms	7.4 A	65 °C	1	3.53 mm	39 W
Marlow Industries, Inc. RC6-8-01S	Lead Wires Sealed	34.04 mm	29.97 mm	130 °C	8.2 V	900 mOhms	7.4 A	65 °C	1	3.63 mm	39 W
Marlow Industries, Inc. RC6-8-01	Lead Wires	34.04 mm	29.97 mm	130 °C	8.2 V	900 mOhms	7.4 A	65 °C	1	3.63 mm	39 W
Marlow Industries, Inc. RC6-8-01LS	Lapped Lead Wires Sealed	34.04 mm	29.97 mm	130 °C	8.2 V	900 mOhms	7.4 A	65 °C	1	3.53 mm	39 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 39.0W @ 27°C 7.4 A 130°C
