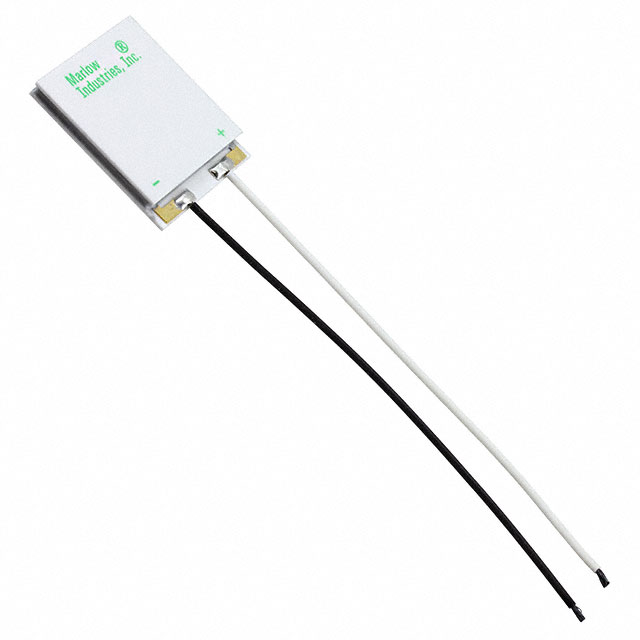

RC6-8-01LS
ActiveMarlow Industries, Inc.
TEM 29.97X29.97X3.53MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC6-8-01LS
ActiveMarlow Industries, Inc.
TEM 29.97X29.97X3.53MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC6-8-01LS |
|---|---|
| Current - Max [Max] | 7.4 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.53 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 39 W |
| Resistance | 900 mOhms |
| Size / Dimension [x] | 34.04 mm |
| Size / Dimension [y] | 29.97 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 43.43 | |
| 5 | $ 40.68 | |||
| 10 | $ 39.68 | |||
| 25 | $ 38.43 | |||
| 60 | $ 37.44 | |||
| 120 | $ 36.44 | |||
Description
General part information
RC6-8 Series
Peltier Module 39.0W @ 27°C 7.4 A 130°C
