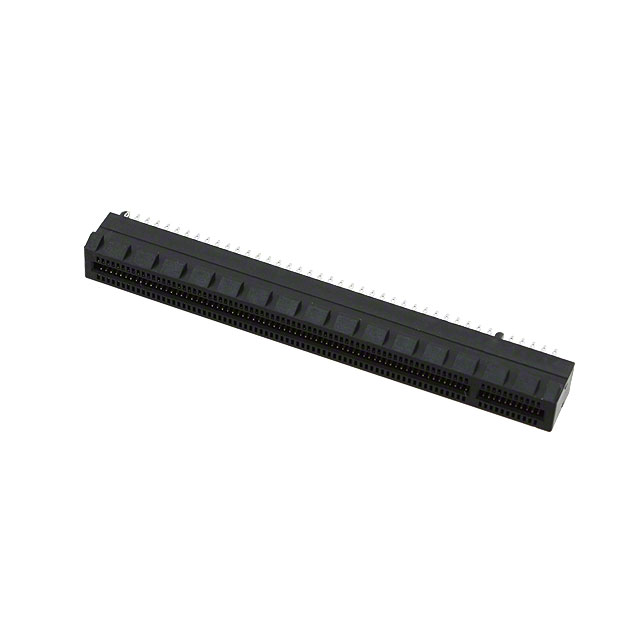

10039755-10003TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 164POS 0.039

Deep-Dive with AI

DocumentsDatasheet cardedge productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10039755-10003TLF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Locking Ramp, Board Guide
Gender	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Through Hole
Number of Positions	164
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Press-Fit

10039755 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Mounting Type	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Gender	Contact Type	Read Out	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness	Card Thickness	Features	Contact Finish	Number of Positions/Bay/Row [custom]
Amphenol ICC (FCI) 10039755-10111TLF	0.039 in	1 mm	2	21	11	Black	Through Hole	64	PCI Express™	15 µin	0.38 µm	Copper Alloy	Press-Fit	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10012T	0.079 in	2 mm	2			Black	Through Hole	98	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold	49
Amphenol ICC (FCI) 10039755-10113TLF	0.039 in	1 mm	2			Black	Through Hole	164	PCI Express™	15 µin	0.38 µm	Copper Alloy	Press-Fit	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10110TLF	0.039 in	1 mm	2			Black	Through Hole	36	PCI Express™	15 µin	0.38 µm	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10311T	0.039 in	1 mm	2			Black	Through Hole	64	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10003TLF	0.039 in	1 mm	2			Black	Through Hole	164	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10102TLF	0.039 in	1 mm	2			Black	Through Hole	98	PCI Express™	15 µin	0.38 µm	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10002TLF	0.039 in	1 mm	2			Black	Through Hole	98	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-20003TLF	0.039 in	1 mm	2			Black	Through Hole	164	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold
Amphenol ICC (FCI) 10039755-10301T	0.039 in	1 mm	2			Black	Through Hole	64	PCI Express™	30 Áin	0.76 Ám	Copper Alloy	Solder Staggered	Female	Cantilever	Dual	Glass Filled Nylon Polyamide (PA)	85 °C	-55 °C	0.062 in	1.57 mm	Board Guide Locking Ramp	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.40
		10	$ 5.67
		25	$ 5.16
		40	$ 4.87
		80	$ 4.47
		230	$ 3.82
