XTR111AIDGQTG4

Obsolete

Texas Instruments

IC PREC VOLT-CURR CONV/TX 10MSOP

Deep-Dive with AI

Search across all available documentation for this part.

XTR111AIDGQTG4

Obsolete

Texas Instruments

IC PREC VOLT-CURR CONV/TX 10MSOP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XTR111AIDGQTG4

Current - Supply	550 µA
Input Type	Voltage
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	Current

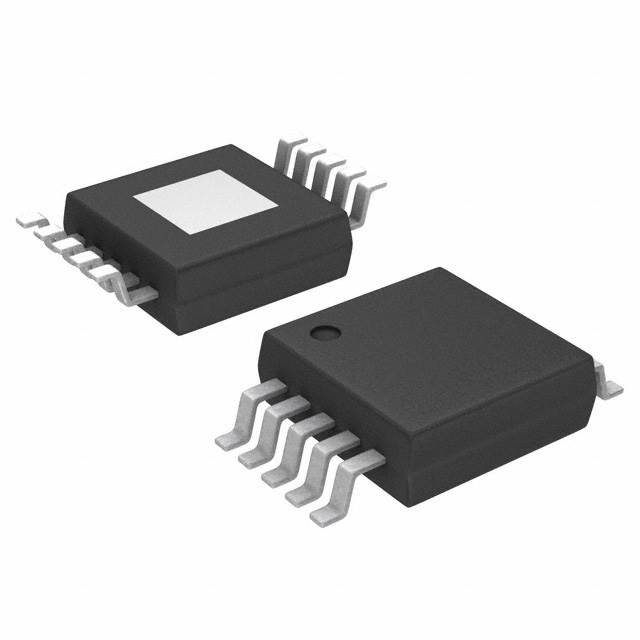

Package / Case	10-PowerTFSOP, 10-MSOP
Package / Case	3 mm, 0.118 in
Supplier Device Package	10-HVSSOP
Type	Current Transmitter

XTR111 Series

Voltage-to-current converter/transmitter with 3-V to 15-V regulator and resistor set I/O ratio

Part	Package / Case	Package / Case	Current - Supply	Mounting Type	Input Type	Supplier Device Package	Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	Supplied Contents	Primary Attributes [Max]	Primary Attributes [Min]	Function	Secondary Attributes [Max]	Secondary Attributes [Min]
Texas Instruments XTR111AIDGQTG4	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	550 µA	Surface Mount	Voltage	10-HVSSOP	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111-2EVM							Power Management				XTR111	Board(s)	5 V 20 mA	0 V 0 mA	Voltage to Current	40 V	8 V
Texas Instruments XTR111AIDRCT	10-VFDFN Exposed Pad		550 µA	Surface Mount	Voltage	10-VSON (3x3)	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111AIDGQR	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	550 µA	Surface Mount	Voltage	10-HVSSOP	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111AIDGQT	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	550 µA	Surface Mount	Voltage	10-HVSSOP	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111AIDGQRG4	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	550 µA	Surface Mount	Voltage	10-HVSSOP	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111AIDRCR	10-VFDFN Exposed Pad		550 µA	Surface Mount	Voltage	10-VSON (3x3)	Current Transmitter	Current	-55 °C	125 °C
Texas Instruments XTR111EVM							Power Management				XTR111	Board(s)	4 V 20 mA	0 V 0 mA	Voltage to Current	40 V	8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XTR111 Series

The XTR111 is a precision voltage-to-current converter designed for the standard 0mA to 20mA or 4mA to 20mA analog signals, and sources up to 32mA. The ratio between input voltage and output current is set by a single resistor, RSET. The circuit can also be modified for voltage-output operation.

An external P-MOSFET transistor provides high output resistance and a broad-compliance voltage range that extends from 2V less than the supply voltage, VVSP, to voltages far less than ground.

The adjustable 3V to 15V subregulator output provides the supply voltage for additional circuitry.
