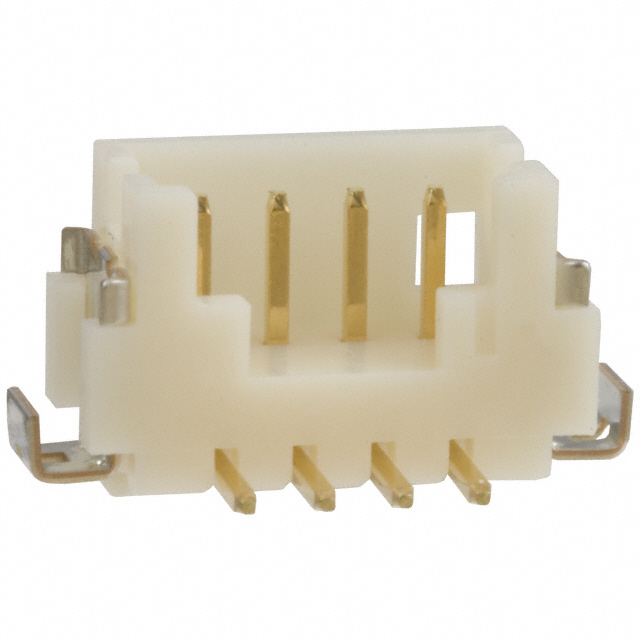

DF13B-4P-1.25V(51)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 4POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF13B-4P-1.25V(51)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 4POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13B-4P-1.25V(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	5.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13B Series

Part	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Shrouding	Contact Material	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Style	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Mated Stacking Heights	Number of Positions
Hirose Electric USA, Inc. DF13B-5P-1.25V(76)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.203 Ám	8 Áin	Header	Board to Cable/Wire	Gold	8 µin	0.203 µm	Surface Mount
Hirose Electric USA, Inc. DF13B-8P-1.25V(77)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.76 Ám	30 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm	8
Hirose Electric USA, Inc. DF13B-4P-1.25V(75)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1		All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	1 µm	39.4 µin	Header	Board to Cable/Wire	Tin	39.4 çin	1 çm	Surface Mount		4
Hirose Electric USA, Inc. DF13B-7P-1.25V(21)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1		All	Shrouded - 3 Wall	Brass	Detent Lock	Solder Retention	-35 °C	85 °C	Solder	Beige	150 VAC	1 µm	39.4 µin	Header	Board to Cable/Wire	Tin	39.4 çin	1 çm	Surface Mount		7
Hirose Electric USA, Inc. DF13B-5P-1.25V(77)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.76 Ám	30 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm
Hirose Electric USA, Inc. DF13B-4P-1.25V(51)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.203 Ám	8 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm	4
Hirose Electric USA, Inc. DF13B-15P-1.25V(51)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.203 Ám	8 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm	15
Hirose Electric USA, Inc. DF13B-3P-1.25V(50)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.203 Ám	8 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm
Hirose Electric USA, Inc. DF13B-10P-1.25V(75)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1		All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	1 µm	39.4 µin	Header	Board to Cable/Wire	Tin	39.4 çin	1 çm	Surface Mount		10
Hirose Electric USA, Inc. DF13B-7P-1.25V(50)	Male Pin	1.25 mm	0.049 in	Square	4.8 mm	0.189 in	Nylon Polyamide (PA)	UL94 V-0	1	Gold	All	Shrouded - 3 Wall	Brass	Detent Lock	Board Guide Solder Retention	-35 °C	85 °C	Solder	Beige	150 VDC	0.203 Ám	8 Áin	Header	Board to Cable/Wire				Surface Mount	5.8 mm	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.42

Description

General part information

DF13B Series

Connector Header Surface Mount 4 position 0.049" (1.25mm)
